• Country
• Czechoslovakia

• Manufacturer / Brand
• Metra Blansko; Blansko

• Year
• 1950 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 234582

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• Material
• Bakelite case

• from Radiomuseum.org

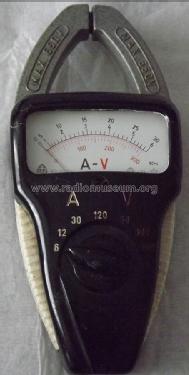

• Model: Clamp A-Vmeter KAVm - Metra Blansko; Blansko

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 175 x 35 x 75 mm / 6.9 x 1.4 x 3 inch

• Notes

•

  Technical data:
  AC current range: 6-12-30-120A
  AC voltage range: 60-300-600V
  Accurate class: 2,5
  max.average wire: 27 mm

  Zangen-Amperemeter mit Voltmeter.


• Net weight (2.2 lb = 1 kg)
• 0.340 kg / 0 lb 12 oz (0.749 lb)

• Author
• Model page created by Jozef Kuklis. See "Data change" for further contributors.
