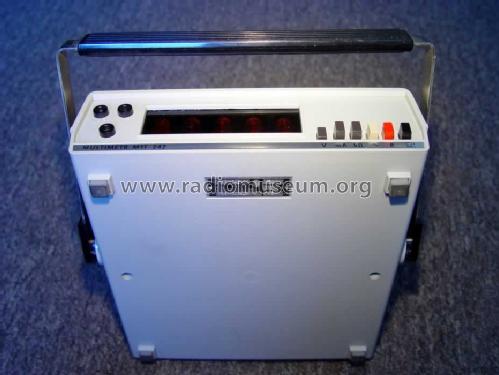

Digital Multimeter M1T 242

Digital Multimeter M1T 242; Metra Blansko; (ID = 987980) Equipment Digital Multimeter M1T 242; Metra Blansko; (ID = 987981) Equipment
Digital Multimeter M1T 242; Metra Blansko; (ID = 987982) Equipment Digital Multimeter M1T 242; Metra Blansko; (ID = 987983) Equipment
Digital Multimeter M1T 242; Metra Blansko; (ID = 987985) Equipment Digital Multimeter M1T 242; Metra Blansko; (ID = 987986) Equipment
Digital Multimeter M1T 242; Metra Blansko; (ID = 987987) Equipment
Use red slider bar for more.
Digital Multimeter M1T 242; Metra Blansko; (ID = 987980) Equipment
Metra Blansko;: Digital Multimeter M1T 242 [Equipment] ID = 987980 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Digital Multimeter M1T 242, Metra Blansko; Blansko

Country:  Czechoslovakia
Manufacturer / Brand:  Metra Blansko; Blansko
Year: 1985 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Digital Multimeter M1T 242 - Metra Blansko; Blansko
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 232 x 74 x 263 mm / 9.1 x 2.9 x 10.4 inch
Notes Features : • Basic Accuracy 0.05% • Auto Ranging • Functional temperature range 0°C... + 40°C • DC Voltage measurement 300.0mV to 300.0 V • AC Voltage measurement 300.0mV to 300.0 V • DC Current measurement 300.0µA to 300.0 mA • AC current measurement 300.0µA to 300.0 mA • Resistance measurement 3.000kΩ to 3000 kΩ
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Source of data -- Original-techn. papers.

Model page created by Jaroslav Hlavaty. See "Data change" for further contributors.
