Wattmeter EL 20 450W

Wattmeter EL 20; Metra Blansko; (ID = 2513225) Equipment Wattmeter EL 20; Metra Blansko; (ID = 505200) Equipment
Wattmeter EL 20; Metra Blansko; (ID = 505650) Equipment Wattmeter EL 20; Metra Blansko; (ID = 1434082) Equipment

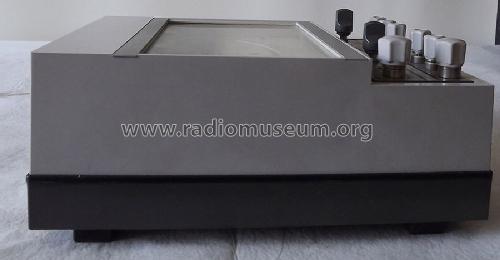

Wattmeter EL 20; Metra Blansko; (ID = 1434083) Equipment Wattmeter EL 20; Metra Blansko; (ID = 1434084) Equipment
Wattmeter EL 20; Metra Blansko; (ID = 1434085) Equipment Wattmeter EL 20; Metra Blansko; (ID = 1835651) Equipment
Wattmeter EL 20; Metra Blansko; (ID = 1835652) Equipment Wattmeter EL 20; Metra Blansko; (ID = 1835653) Equipment
Use red slider bar for more.
Wattmeter EL 20; Metra Blansko; (ID = 2513225) Equipment
Metra Blansko;: Wattmeter EL 20 [Equipment] ID = 2513225 720x918
Select picture or schematic to display from thumbnails on the right and click for download.
For model Wattmeter EL 20 450W, Metra Blansko; Blansko:
Wattmeter EL20

Country:  Czechoslovakia
Manufacturer / Brand:  Metra Blansko; Blansko
Year: 1982 ?? Category: Service- or Lab Equipment
schematic requested
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Wattmeter EL 20 [450W] - Metra Blansko; Blansko
Dimensions (WHD) 200 x 100 x 260 mm / 7.9 x 3.9 x 10.2 inch
Notes

Wattmeter. Präzisionsmessgerät: Messung von Induktivitäten, Kapazitäten, Strom und Spannung bis max 650 V

Päzisions-Laboratoriumsinstrument mit elektrodynamischen Messwerk.

Spannungsbereich: 75 - 150 - 300 - 450 V

Strombereich: 0,5 - 1 A

Genauigkeitsklasse: 0,2

Frequenzbereich: 30 - 100 Hz

Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)
Source of data -- Original-techn. papers.

Model page created by Wolfgang Lill. See "Data change" for further contributors.
