• Country
• Czechoslovakia

• Manufacturer / Brand
• Metra Blansko; Blansko

• Year
• 1970 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 257369

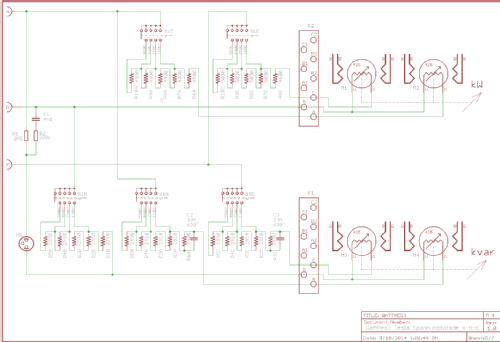

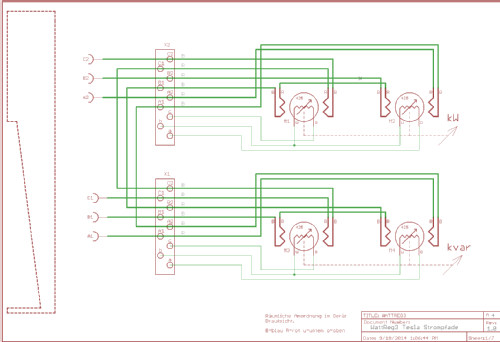

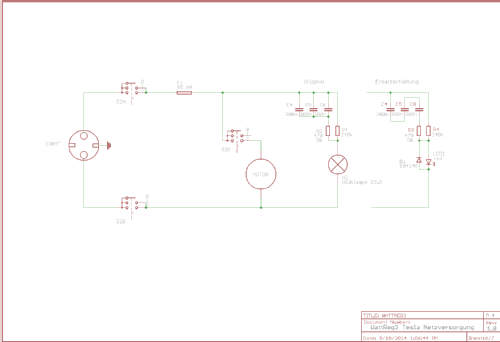

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

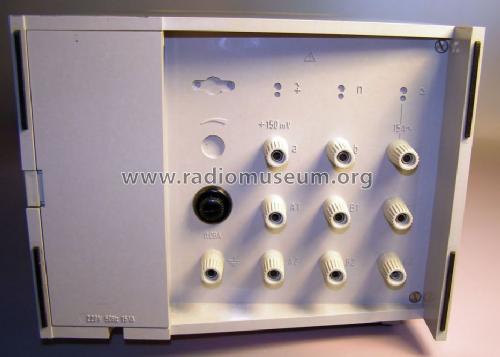

• Model: Wattreg 3 - Metra Blansko; Blansko

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 240 x 180 x 400 mm / 9.4 x 7.1 x 15.7 inch

• Notes

• Metra Wattreg 3, portables kW / kvar Meßgerät mit Dual-Schreiber.

  7 Vorschub-Geschwindigkeiten, 4 Messbereiche: 110, 220, 440 und 550 V. Betriebsmodi "Ein" und "Aufzeichnen".



• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Author
• Model page created by Wolfgang Sundhaus. See "Data change" for further contributors.
