Mustek Icomet

Mustek Icomet ; Metra Blansko; (ID = 1432721) Equipment Mustek Icomet ; Metra Blansko; (ID = 481995) Equipment
Mustek Icomet ; Metra Blansko; (ID = 482011) Equipment Mustek Icomet ; Metra Blansko; (ID = 1432722) Equipment
Mustek Icomet ; Metra Blansko; (ID = 1432723) Equipment Mustek Icomet ; Metra Blansko; (ID = 1432724) Equipment
Use red slider bar for more.

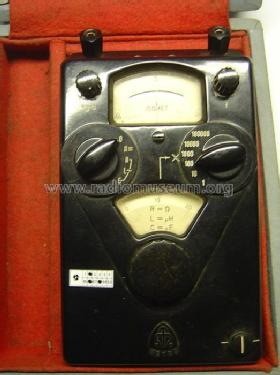

Mustek Icomet ; Metra Blansko; (ID = 1432721) Equipment
Metra Blansko;: Mustek Icomet [Equipment] ID = 1432721 853x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mustek Icomet, Metra Blansko; Blansko

Country:  Czechoslovakia
Manufacturer / Brand:  Metra Blansko; Blansko
Year: 1966 Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Dry Batteries / 4,5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Mustek Icomet - Metra Blansko; Blansko
Material Bakelite case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 115 x 192 x 60 mm / 4.5 x 7.6 x 2.4 inch
Notes RLC-Messbrücke/RLC Bridge; R = Ohm, L = µH, C = pF; ×1 ... ×100000.
Net weight (2.2 lb = 1 kg) 0.8 kg / 1 lb 12.2 oz (1.762 lb)
Source of data -- Collector info (Sammler)

Model page created by Wolfgang Lill. See "Data change" for further contributors.
