Metrapont TH 2

Metrapont TH 2; Metrawatt, BBC Goerz (ID = 1995925) Equipment Metrapont TH 2; Metrawatt, BBC Goerz (ID = 1995926) Equipment

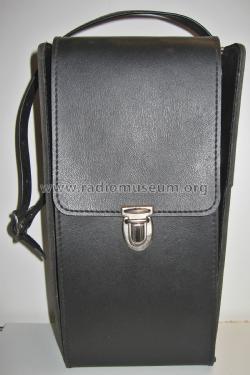

Metrapont TH 2; Metrawatt, BBC Goerz (ID = 1995927) Equipment
Use red slider bar for more.
Metrapont TH 2; Metrawatt, BBC Goerz (ID = 1995925) Equipment
Metrawatt, BBC Goerz: Metrapont TH 2 [Equipment] ID = 1995925 1352x2100
Select picture or schematic to display from thumbnails on the right and click for download.
For model Metrapont TH 2, Metrawatt, BBC Goerz Metrawatt, ABB Metrawatt; Nürnberg

Country:  Germany
Manufacturer / Brand:  Metrawatt, BBC Goerz Metrawatt, ABB Metrawatt; Nürnberg
Year: 1987 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Metrapont TH 2 - Metrawatt, BBC Goerz Metrawatt
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 112 x 85 x 215 mm / 4.4 x 3.3 x 8.5 inch
Notes

Netzbetriebene Thomson-Messbrücke zur Messung kleiner ohmscher Widerstände.
Der Anschluss des Messobjektes erfolgt in 4-Leiter-Technik; der Brückenabgleich wird über ein Schleifdrahtpotentiometer vorgenommen.
Messbereiche: 200 µΩ...2,1 mΩ, 2...21 mΩ, 20...210 mΩ, 200 mΩ...2,1 Ω.
Spannung am Messobjekt: 0,4 mV...1,5 V [nahezu proportional zu Rx].
Messfehler: +/- 1 %, bezogen auf Skalenendwert.
Eigenverbrauch: ca. 4,4...8,8 VA.

Net weight (2.2 lb = 1 kg) 1.4 kg / 3 lb 1.3 oz (3.084 lb)
Mentioned in - - Manufacturers Literature

Model page created by Michael Mischke. See "Data change" for further contributors.
