Metravo Electronic

Metravo Electronic ; Metrawatt, BBC Goerz (ID = 433962) Equipment Metravo Electronic ; Metrawatt, BBC Goerz (ID = 433965) Equipment
Metravo Electronic ; Metrawatt, BBC Goerz (ID = 433963) Equipment Metravo Electronic ; Metrawatt, BBC Goerz (ID = 1965858) Equipment
Metravo Electronic ; Metrawatt, BBC Goerz (ID = 2041057) Equipment
Use red slider bar for more.
Metravo Electronic ; Metrawatt, BBC Goerz (ID = 433962) Equipment

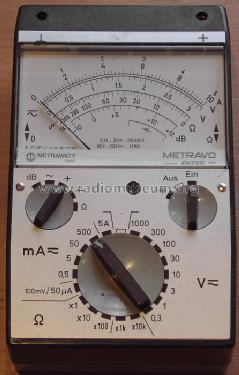

Metrawatt, BBC Goerz: Metravo Electronic [Equipment] ID = 433962 447x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Metravo Electronic, Metrawatt, BBC Goerz Metrawatt, ABB Metrawatt; Nürnberg

Country:  Germany
Manufacturer / Brand:  Metrawatt, BBC Goerz Metrawatt, ABB Metrawatt; Nürnberg
Year: 1971 ? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) 6:
Wave bands - without
Details
Power type and voltage Dry Batteries / 3 x 1,5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Metravo Electronic - Metrawatt, BBC Goerz Metrawatt
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 90 x 50 x 152 mm / 3.5 x 2 x 6 inch
Notes Vielfachmessgerät, Gleich/Wechselspannung 100 mV - 1000 V, Gleich/Wechselstrom 50 uA - 5 A, Widerstand 0 - 5 MOhm.
Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Price in first year of sale 245.00 DM
Mentioned in Heinz Richter Werbung in "Radiotechnik" von 1971

Model page created by Ottmar Rollmann. See "Data change" for further contributors.



All listed radios etc. from Metrawatt, BBC Goerz Metrawatt, ABB Metrawatt; Nürnberg
Here you find 81 models, 74 with images and 24 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
