Metriso 5000 A/AK

Metriso 5000 A/AK; Metrawatt, BBC Goerz (ID = 1302909) Equipment

Metriso 5000 A/AK; Metrawatt, BBC Goerz (ID = 1302910) Equipment
Metriso 5000 A/AK; Metrawatt, BBC Goerz (ID = 1302742) Equipment Metriso 5000 A/AK; Metrawatt, BBC Goerz (ID = 1302743) Equipment
Metriso 5000 A/AK; Metrawatt, BBC Goerz (ID = 1302908) Equipment
Use red slider bar for more.
Metriso 5000 A/AK; Metrawatt, BBC Goerz (ID = 1302742) Equipment
Metrawatt, BBC Goerz: Metriso 5000 A/AK [Equipment] ID = 1302742 933x747
Select picture or schematic to display from thumbnails on the right and click for download.
For model Metriso 5000 A/AK, Metrawatt, BBC Goerz Metrawatt, ABB Metrawatt; Nürnberg

Country:  Germany
Manufacturer / Brand:  Metrawatt, BBC Goerz Metrawatt, ABB Metrawatt; Nürnberg
Year: 1999 Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Dry Batteries / 6 × D 1,5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Metriso 5000 A/AK - Metrawatt, BBC Goerz Metrawatt
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 290 x 140 x 250 mm / 11.4 x 5.5 x 9.8 inch

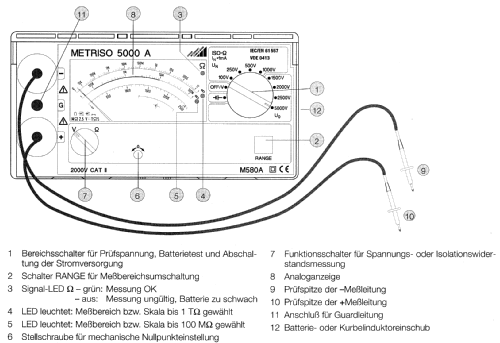

Notes Hochspannungs-Isolationsmessgerät Metriso 5000.
Ausführung A: Mit Batterien
Ausführung AK: Mit Kurbelinduktor
Das Gerät 5000 A lässt sich auch nachträglich mit einem Kurbelinduktormodul Z580A nachrüsten, das in das Batteriefach eingeschoben wird.
Isolationswiderstand:
Messbereiche: 100 kΩ ... 100 MΩ; 100 kΩ ... 1 TΩ.
Messspannungen: 100; 250; 500; 1000; 1500; 2000; 2500; 5000 V.
Gleich- und Wechselspannung:
Messbereich: 0...2000 V AC/DC
Net weight (2.2 lb = 1 kg) 3.4 kg / 7 lb 7.8 oz (7.489 lb)

Model page created by a member from D. See "Data change" for further contributors.
