Punktschreiber Multiscript MS2

Punktschreiber Multiscript MS2; Metrawatt, BBC Goerz (ID = 440268) Equipment

Punktschreiber Multiscript MS2; Metrawatt, BBC Goerz (ID = 750292) Equipment

Punktschreiber Multiscript MS2; Metrawatt, BBC Goerz (ID = 750293) Equipment
Punktschreiber Multiscript MS2; Metrawatt, BBC Goerz (ID = 456038) Equipment Punktschreiber Multiscript MS2; Metrawatt, BBC Goerz (ID = 456039) Equipment
Punktschreiber Multiscript MS2; Metrawatt, BBC Goerz (ID = 456040) Equipment Punktschreiber Multiscript MS2; Metrawatt, BBC Goerz (ID = 456041) Equipment
Punktschreiber Multiscript MS2; Metrawatt, BBC Goerz (ID = 456042) Equipment
Use red slider bar for more.
Punktschreiber Multiscript MS2; Metrawatt, BBC Goerz (ID = 456038) Equipment
Metrawatt, BBC Goerz: Punktschreiber Multiscript MS2 [Equipment] ID = 456038 486x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Punktschreiber Multiscript MS2, Metrawatt, BBC Goerz Metrawatt, ABB Metrawatt; Nürnberg

Country:  Germany
Manufacturer / Brand:  Metrawatt, BBC Goerz Metrawatt, ABB Metrawatt; Nürnberg
Year: 1966 ? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Punktschreiber Multiscript MS2 - Metrawatt, BBC Goerz Metrawatt
Material Bakelite case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 122 x 90 x 247 mm / 4.8 x 3.5 x 9.7 inch

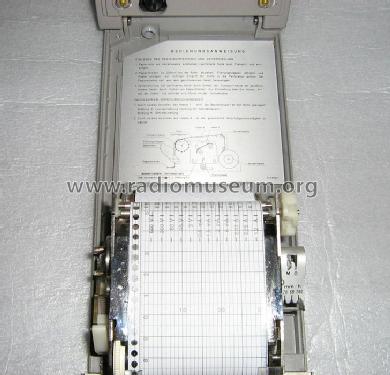

Notes Tragbares, tintenlos registrierendes Vielfach-Meßinstrument. Die Registrierung erfolgt mit rascher Punktfolge auf Wachspapier.
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)

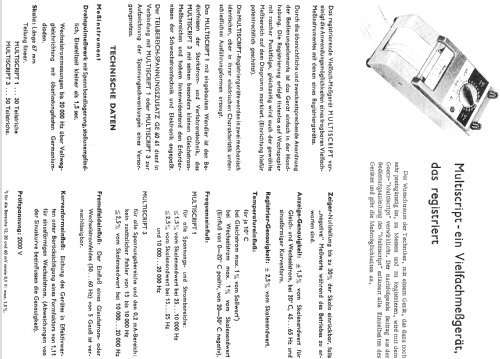

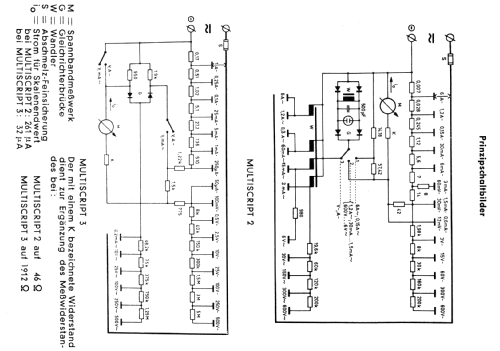

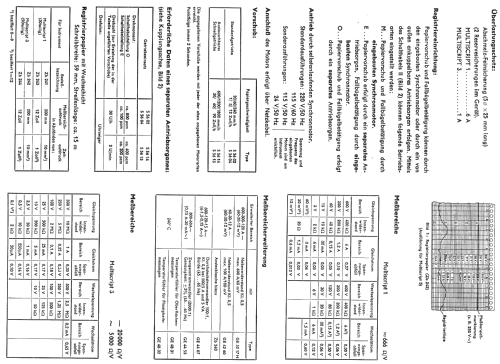

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Geert Schulte. See "Data change" for further contributors.
