TAVO Ohmmeter

TAVO Ohmmeter ; Metrawatt, BBC Goerz (ID = 1476775) Equipment TAVO Ohmmeter ; Metrawatt, BBC Goerz (ID = 1896567) Equipment
TAVO Ohmmeter ; Metrawatt, BBC Goerz (ID = 1896568) Equipment TAVO Ohmmeter ; Metrawatt, BBC Goerz (ID = 1896569) Equipment
TAVO Ohmmeter ; Metrawatt, BBC Goerz (ID = 1896571) Equipment
Use red slider bar for more.
TAVO Ohmmeter ; Metrawatt, BBC Goerz (ID = 1476775) Equipment
Metrawatt, BBC Goerz: TAVO Ohmmeter [Equipment] ID = 1476775 933x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model TAVO Ohmmeter, Metrawatt, BBC Goerz Metrawatt, ABB Metrawatt; Nürnberg:
TAVO Ohmmeter Metrawatt

Country:  Germany
Manufacturer / Brand:  Metrawatt, BBC Goerz Metrawatt, ABB Metrawatt; Nürnberg
Year: 1940 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Dry Batteries / 3 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: TAVO Ohmmeter - Metrawatt, BBC Goerz Metrawatt
Material Bakelite case
Dimensions (WHD) 95 x 55 x 190 mm / 3.7 x 2.2 x 7.5 inch
Notes

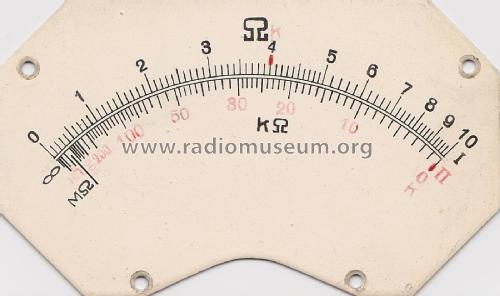

Ohmmeter, Messbereiche 0 ... 1 / 10 / 100 / 1000 Ω und 0 ... 10 MΩ

Genauigkeit: ± 1 %

Net weight (2.2 lb = 1 kg) 0.7 kg / 1 lb 8.7 oz (1.542 lb)
Mentioned in - - Manufacturers Literature

Model page created by Alexander Kusdas. See "Data change" for further contributors.



All listed radios etc. from Metrawatt, BBC Goerz Metrawatt, ABB Metrawatt; Nürnberg
Here you find 81 models, 74 with images and 24 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
