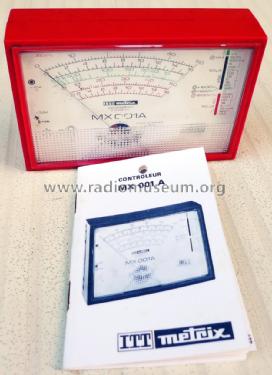

Controleur MX001A; Metrix, Compagnie (ID = 1678459) Equipment
Use red slider bar for more.
Controleur MX001A; Metrix, Compagnie (ID = 812203) Equipment
Metrix, Compagnie: Controleur MX001A [Equipment] ID = 812203 750x521
Select picture or schematic to display from thumbnails on the right and click for download.
For model Controleur MX001A, Metrix, Compagnie Générale de Métrologie; Annecy

Country:  France
Manufacturer / Brand:  Metrix, Compagnie Générale de Métrologie; Annecy
Year: 1972 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Dry Batteries / 2 x 1,5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Controleur MX001A - Metrix, Compagnie Générale de
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 137 x 34 x 96 mm / 5.4 x 1.3 x 3.8 inch
Notes Multimeter DC 20 kOhms/V; 0.1 V/1600V; 50 µA to 5A; AC 5V to 1600V; AC 160 µA to 1.6A; Resistance from 2 Ohms to 5 MOhms.
Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)
Source of data -- Original-techn. papers.
Mentioned in - - Manufacturers Literature

Model page created by Antonio Barros-Regada. See "Data change" for further contributors.



All listed radios etc. from Metrix, Compagnie Générale de Métrologie; Annecy
Here you find 155 models, 149 with images and 83 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Metrix, Compagnie: Controleur MX001A
Threads: 1 | Posts: 1
Hits: 2049     Replies: 0
metrix: MX001A; Controleur
Jean Marchal
10.Mar.11
  1

Bonjour,



Il existe une variante du multimètre MX001A : le MX001B.

C'est le même appareil (il était marqué MX001A sur sa façade) sauf qu'il était commercialisé en kit.

Jean
