Generateur de Mires SECAM GX951A
Metrix, Compagnie Générale de Métrologie; Annecy
- Country
- France
- Manufacturer / Brand
- Metrix, Compagnie Générale de Métrologie; Annecy
- Year
- 1967
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 121640
Collection Privée - Patrice Schoser
FR "Television" No 173 May 1967

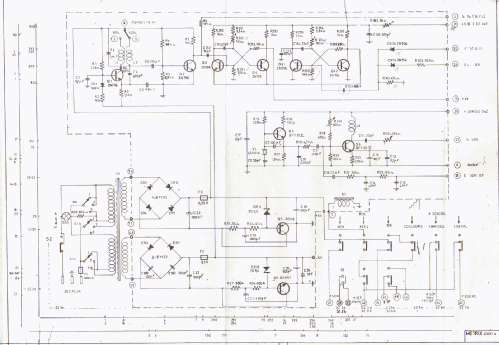

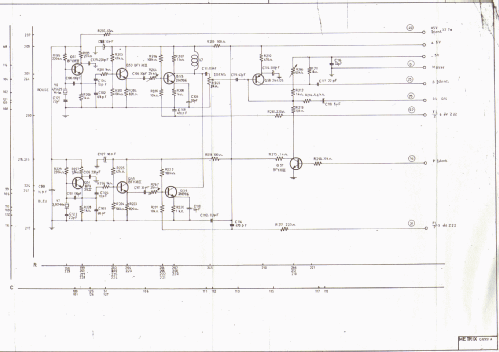

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Generateur de Mires SECAM GX951A - Metrix, Compagnie Générale de
- Shape
- Tablemodel, low profile (big size).
- Notes
- SECAM 625 lines color test signal generator, 819 lines b/w test signals, French standard UHF modulator ch. 31 - 35.
- Mentioned in
- FR "Television" No 173 May 1967
- Author
- Model page created by a member from A. See "Data change" for further contributors.
