• Country
• France

• Manufacturer / Brand
• Metrix, Compagnie Générale de Métrologie; Annecy

• Year
• 1948

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 134911

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 120; 130; 150; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

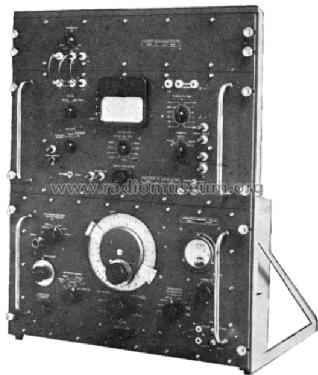

• Model: Générateur Universel 930D - Metrix, Compagnie Générale de

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 535 x 330 x 235 mm / 21.1 x 13 x 9.3 inch

• Notes
• Frequenzgenerator; Messbereiche und Einstellungen:
  f: 6 Bereiche 50 kHz bis 50 MHz;
  f: 50 Hz - 150 Hz - 400 Hz - 800 Hz - 1,5 kHz - 3 kHz;
  U: 0,2 µV bis 1 V; 2 µV bis 10 V.

• Net weight (2.2 lb = 1 kg)
• 18 kg / 39 lb 10.4 oz (39.648 lb)

• Source of data
• - - Manufacturers Literature

• Literature/Schematics (1)
• Toute la radio (No 124, Mars-Avril 1948)

• Author
• Model page created by Karlheinz Gützlaff. See "Data change" for further contributors.
