• Country
• France

• Manufacturer / Brand
• Metrix, Compagnie Générale de Métrologie; Annecy

• Year
• 1958

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 99742

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 1,5 & 15 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Multimeter 462 - Metrix, Compagnie Générale de

• Dimensions (WHD)
• 140 x 100 x 40 mm / 5.5 x 3.9 x 1.6 inch

• Notes
• Gleichspannung in 7 Bereichen von 1,5 - 1000 V. Wechselspannung in 6 Bereichen von 3 - 1000 V. Gleichstrom in 6 Bereichen von 100 µA - 5 A. Wechselstrom in 5 Bereichen von 1 mA - 5A. Widerstandsbereich 5 Ohm - 10 MOhm.

• Net weight (2.2 lb = 1 kg)
• 0.6 kg / 1 lb 5.1 oz (1.322 lb)

• Price in first year of sale
• 140.00 DM

• Source of data
• -- Original-techn. papers.

• Mentioned in
• Funkschau (1966 Heft 7 Seite 523 Advert.)

• Literature/Schematics (1)

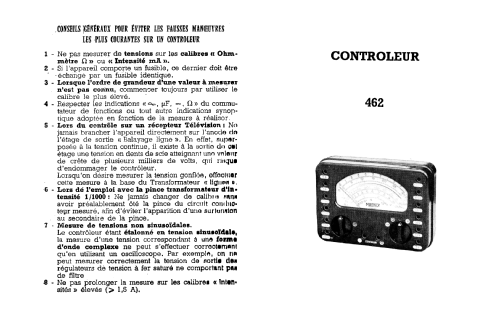

• Radio Constructeur et Dépanneur mai 1963

• Literature/Schematics (2)
• Radio Constructeur n.144, déc. 1958

• Author
• Model page created by Jos Lauth. See "Data change" for further contributors.
