MX230

MX230; Metrix marque, (ID = 1656841) Equipment
MX230; Metrix marque, (ID = 2317990) Equipment MX230; Metrix marque, (ID = 307035) Equipment
MX230; Metrix marque, (ID = 1656843) Equipment MX230; Metrix marque, (ID = 307034) Equipment
MX230; Metrix marque, (ID = 2317989) Equipment MX230; Metrix marque, (ID = 2317991) Equipment
MX230; Metrix marque, (ID = 2317992) Equipment
Use red slider bar for more.
MX230; Metrix marque, (ID = 2317990) Equipment
Metrix marque,: MX230 [Equipment] ID = 2317990 1400x1866
Select picture or schematic to display from thumbnails on the right and click for download.
For model MX230, Metrix (marque), Compagnie Générale de Métrologie; Annecy

Country:  France
Manufacturer / Brand:  Metrix (marque), Compagnie Générale de Métrologie; Annecy
Year: 1986 Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Dry Batteries / 9 & 1.5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: MX230 - Metrix marque, Compagnie
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 110 x 185 x 45 mm / 4.3 x 7.3 x 1.8 inch

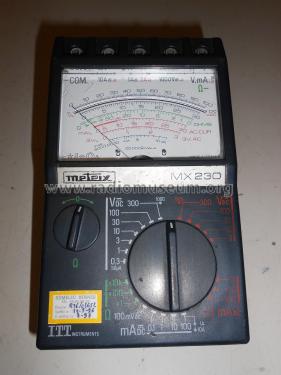

Notes Multimètre analogique, rèsistance interne 20000 Ohm/V, Calibres VoltDC: 100 mV - 300 V; VoltAC: 3-300 V; AmpDC: 50 µA - 10 A; AmpAC: 3 mA - 10 A; Ohmmétre: ×1, ×100, ×10 k.
Source of data -- Collector info (Sammler)

Model page created by Urs Gloor. See "Data change" for further contributors.



All listed radios etc. from Metrix (marque), Compagnie Générale de Métrologie; Annecy
Here you find 153 models, 148 with images and 81 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
