µ Scope B1010

µ Scope B1010; Metrix marque, (ID = 1550767) Equipment µ Scope B1010; Metrix marque, (ID = 1550768) Equipment
µ Scope B1010; Metrix marque, (ID = 1550769) Equipment µ Scope B1010; Metrix marque, (ID = 2515879) Equipment
µ Scope B1010; Metrix marque, (ID = 2516074) Equipment
Use red slider bar for more.
µ Scope B1010; Metrix marque, (ID = 1550767) Equipment
Metrix marque,: µ Scope B1010 [Equipment] ID = 1550767 760x609
Select picture or schematic to display from thumbnails on the right and click for download.
For model µ Scope B1010, Metrix (marque), Compagnie Générale de Métrologie; Annecy:
Quelle: ebay Kleinanzeigen #152129218

Country:  France
Manufacturer / Brand:  Metrix (marque), Compagnie Générale de Métrologie; Annecy
Year: 1977 ? Category: Service- or Lab Equipment
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details

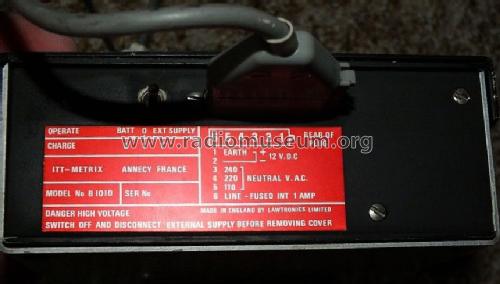

Power type and voltage Line / Storage batteries (perhaps also batteries) / 110; 220; 240 / DC 12 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: µ Scope B1010 - Metrix marque, Compagnie
Material Metal case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 140 x 60 x 200 mm / 5.5 x 2.4 x 7.9 inch
Notes

Metrix µ Scope B1010 ist für Netz- und Gleichspannungsbetrieb verwendbar.
1 Kanal, Y-Verstärker kontinuierlich 0.01...0.2 V/div., Abschwächer x1, x10, x100.
Zeitbasis 1...100 µs/div, 1...100...1000 ms/div in 3 Stufen und kontinuierlich.
Triggerung intern/extern, Eingang für Z-Modulation.

Made in England by Lawtronics Limited.

Model page created by Bernhard Nagel. See "Data change" for further contributors.
