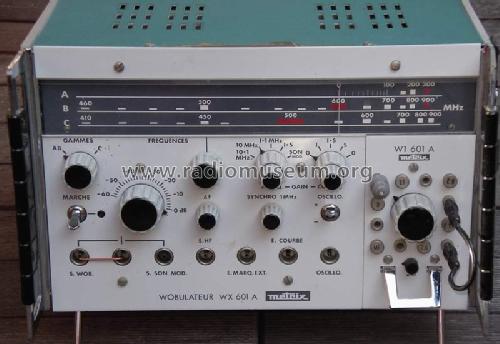

Universal-Wobbler WX-601A - W1-601A - W2-601A

Metrix, Compagnie Générale de Métrologie; Annecy

  • Year
  • 1968
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 119800

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220 Volt
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Universal-Wobbler WX-601A - W1-601A - W2-601A - Metrix, Compagnie Générale de
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 297 x 177 x 235 mm / 11.7 x 7 x 9.3 inch
  • Notes
  • Universalwobbler WX601A ist Grundgerät;
    W1601A und W2601A sind Zusatzschaltungen.
    Frequenzbereich: 0,5 - 350MHz; 460-950MHz; 410-900MHz, Wobbelhub bis 40MHz.
  • Net weight (2.2 lb = 1 kg)
  • 8.5 kg / 18 lb 11.6 oz (18.722 lb)
  • Source of data
  • -- Original-techn. papers.
  • Literature/Schematics (1)
  • Original Gerät und techn. Manual
  • Author
  • Model page created by Henning Oelkers. See "Data change" for further contributors.
