Wobuloscope 232
Metrix, Compagnie Générale de Métrologie; Annecy
- Country
- France
- Manufacturer / Brand
- Metrix, Compagnie Générale de Métrologie; Annecy
- Year
- 1963 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 121528

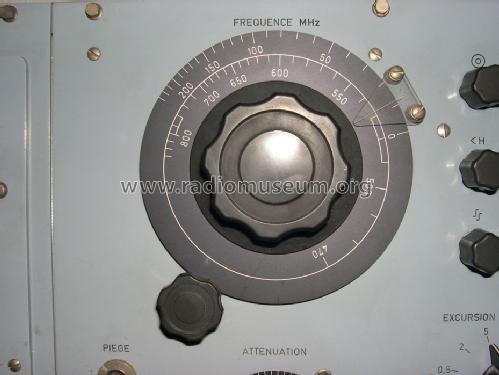

Face avant
FR "Television" No 167 Oct. 1966
Werbung in der Funkschau 1963, Heft 19
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 160; 220; 250 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Wobuloscope 232 - Metrix, Compagnie Générale de
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 535 x 330 x 260 mm / 21.1 x 13 x 10.2 inch
- Notes
- Eingebauter Markengeber und Sichtgerät, von ZF bis 860 MHz.
Le Wobuloscope 232 est une version plus complète du 231 avec les bandes de fréquences TV 4 et 5. Il possède les bandes 1-2-3 de 5 à 230 MHz et les bandes 4 et 5 de 470 à 860 MHz. La modulation de fréquence se fait sur 0.5, 2, 5, 10, 15, 20 MHz.
- Net weight (2.2 lb = 1 kg)
- 19 kg / 41 lb 13.6 oz (41.85 lb)
- Mentioned in
- FR "Television" No 168 Nov. 1966
- Literature/Schematics (1)
- - - Manufacturers Literature
- Literature/Schematics (2)
- Funkschau (Metrix, Produkt-Anzeige, 2. Februarheft 4/1963)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
