Differential-T Tuner MFJ-986

MFJ Enterprises; Starkville (MS)

  • Year
  • 1989
  • Category
  • Radio module post 1925 (not a part, not a key)
  • Radiomuseum.org ID
  • 189242

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Main principle
  • RF-Circuit or wave trap (separate, can also be an antenna with amp.)
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Differential-T Tuner MFJ-986 - MFJ Enterprises; Starkville MS
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 278 x 115 x 375 mm / 10.9 x 4.5 x 14.8 inch
  • Notes

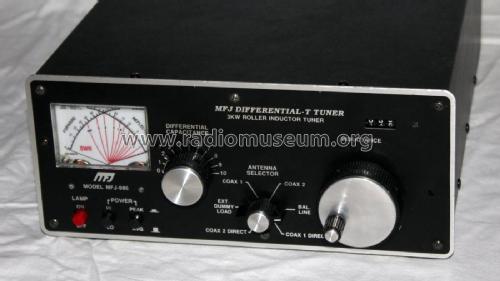

  • The MFJ-986 Differential-T 3kW Tuner uses a differential capacitor to make tuning easy. It continuously tunes all frequency from 1.8 trought 30 MHz, including all the WARC bands. The roller inductor lets you tune down SWR to the absolute minimum. The MFJ-986 also features a peak reading cross-needle, SWR/Wattmeter, and a new current balun that will work with balanced open wire, twinlead, or twin-axial feedlines. An internal six position antenna-selector switch selects two coaxial line output, a single wire line-balanced line output, or an external dummy load connection.
  • Net weight (2.2 lb = 1 kg)
  • 4 kg / 8 lb 13 oz (8.811 lb)
  • Price in first year of sale
  • 269.95 $
  • Source of data
  • -- Original-techn. papers.
  • Author
  • Model page created by Emilio Focosi. See "Data change" for further contributors.
