For model Deluxe Versa Tuner II (2) MFJ-949E, MFJ Enterprises; Starkville (MS)

Country:  United States of America (USA)
Manufacturer / Brand:  MFJ Enterprises; Starkville (MS)
Year: 1985 ?? Category: Amateur Equipment (Other, but not Key)
Wave bands Short Wave (SW only)
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Deluxe Versa Tuner II MFJ-949E - MFJ Enterprises; Starkville MS
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 270 x 95 x 190 mm / 10.6 x 3.7 x 7.5 inch
Notes

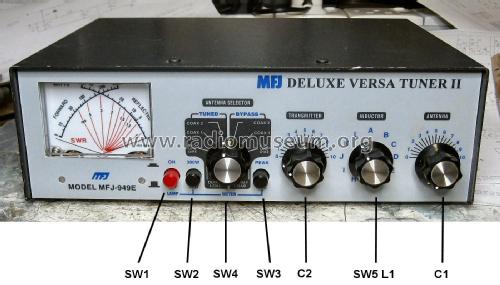

Antenna tuner 1.8-30 MHz, 30/300 watts, built-in dummy load, antenna switch for 3 antennas Coax1 Coax2 & Long wire, cross pointer instrument SWR / watt meter, display switchable peak / AVG; Balun 4: 1.

Note: on some examples the transistor shown in the schematic is not fitted.

Antennentuner 1,8-30 MHz, 30 / 300 Watt, eingebauter Dummyload, Antennenschalter für 2 Eingänge, Kreuzzeigerinstrument SWR/Wattmeter, Anzeige umschaltbar Peak/AVG; Balun 4:1.

Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
