MF transmitter Converter
MF Solutions, Pittsford, VT
- Country
- United States of America (USA)
- Manufacturer / Brand
- MF Solutions, Pittsford, VT
- Year
- 2000 ??
- Category
- Amateur Transmitter (only)
- Radiomuseum.org ID
- 242898
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- Wave Bands given in the notes.
- Details
- Converter
- Power type and voltage
- Powered by external power supply or a main unit. / DC 13.8 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org

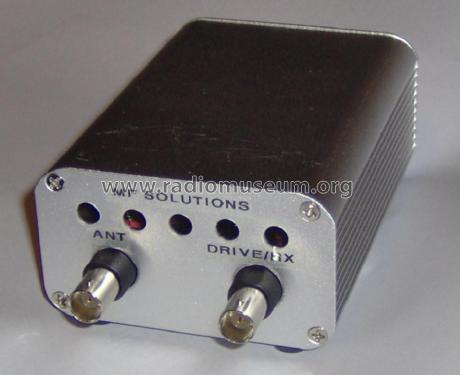

- Model: MF transmitter Converter - MF Solutions, Pittsford, VT
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 80 x 45 x 130 mm / 3.1 x 1.8 x 5.1 inch
- Notes
-
Medium Frequency Transmit Converter; Input Frequency 3.66 MHz to 3.68 MHz; Output Frequency 460 to 480 kHz; Maximum Input RF Power 500 mW; Maximum Output RF Power 22 W into 50 Ohms non-reactive; Maximum Supply Current 2.2 A; Harmonic Output minimum 50 dB below fundamental; Transmit Modes CW, MSK, FSK, "WSPR"; Receive Loopback to transceiver; Custom aluminium enclosure; suitable for use any transceiver with 460 to 480 kHz reception mode and 3.66 to 3.68 MHz transmission mode (i.e. Yaesu FT747GX) for operation on 630 meters amateur band.
- Net weight (2.2 lb = 1 kg)
- 0.8 kg / 1 lb 12.2 oz (1.762 lb)
