• Country
• Spain

• Manufacturer / Brand
• Micafix Electrónica; San Sebastián

• Year
• 1968 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 362345

• • alternative name: Creig Electrónica

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• BC108 SFT337 SFT353 SFT377 PTO AC180 AC181 M30C1200

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 4 W (max.)

• from Radiomuseum.org
• Model: Amplificador B.F. Hi-Fi a Simetría Complementaria SC/7-4W - Micafix Electrónica; San

• Notes

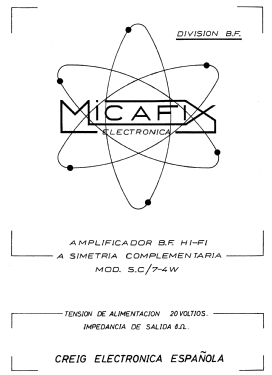

• Micafix Electrónica (Creig Electrónica); Amplificador B.F. Hi-Fi a Simetría Complementaria con módulo SC/7-4W

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
