Altona - Collection 1940 Crosley Duette 56TD

• Country
• United States of America (USA)

• Manufacturer / Brand
• Micron Technology, Inc.; Boise (ID)

• Year
• 1995 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72919

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Storage and/or dry batteries / 3 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Altona - Collection 1940 Crosley Duette 56TD - Micron Technology, Inc.; Boise

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 135 x 90 x 45 mm / 5.3 x 3.5 x 1.8 inch

• Notes

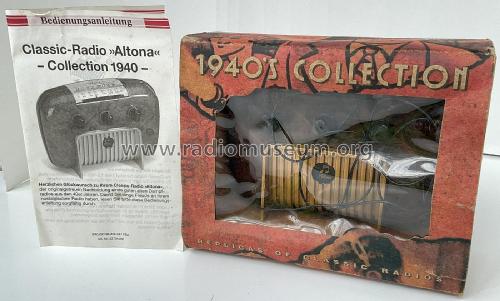

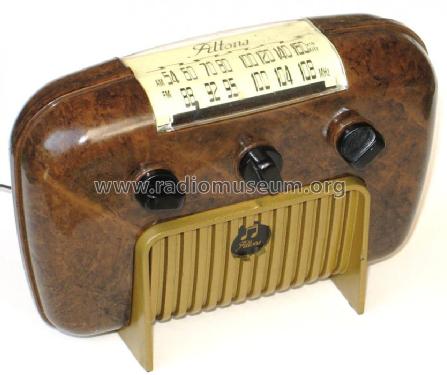

• Miniatur-Replica of Crosley Duette 56TD-R.

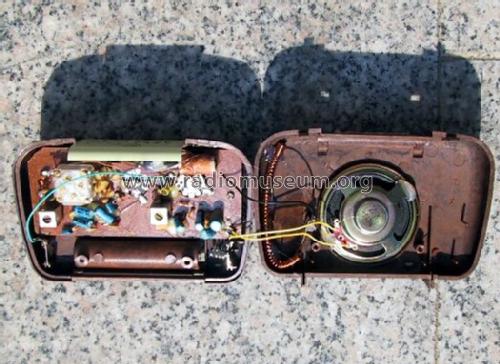

  1 IC , 2x R6 Batteries. Antennas: AM Ferrite rod, FM wire. Distributed in EU by >Das Beste< Reader`s Digest, also "made in Japan for (US) Kmart, item number 980-300", Toshiba technology.

  Complete version with FM wired antenna

• Net weight (2.2 lb = 1 kg)
• 0.2 kg / 0 lb 7 oz (0.441 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
