M-tronic 105 40105
M-tronic; (wo? where?)
- Country
- Germany
- Manufacturer / Brand
- M-tronic; (wo? where?)
- Year
- 1989 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 187024
- Number of Transistors
- 2
- Semiconductors
- unknown_tr TDA7010T
- Main principle
- FLL, Frequency-locked loop (not PLL); ZF/IF 70 kHz
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Dry Batteries / LR44: 3 x 1.5 Volt
- Loudspeaker
- - only for Earphone!
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

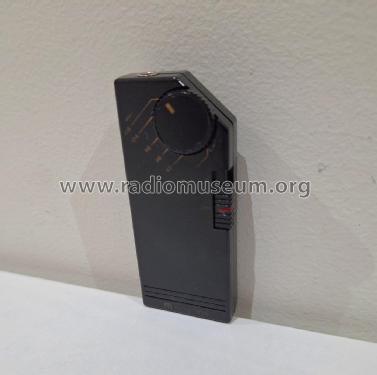

- Model: M-tronic 105 40105 - M-tronic; wo? where?
- Shape
- Design Radio or Novelty / Gadget - fancy or unusual shape.
- Dimensions (WHD)
- 30 x 76 x 12 mm / 1.2 x 3 x 0.5 inch
- Notes
-
Frequenzbereich: 88-108 MHz, Kopfhöreranschluß über 3,5 mm Klinkenbuchse, Antenne: Kopfhörer-Kabel-Antenne, Betrieb mit 3 x Alkali-Mangan-Batterien LR44, Reg. U.K. Design
Siehe auch die Modelle
Mikes Electronic GmbH ist nicht der Hersteller dieses Gerätes, sondern hat im Auftrag des Händlers die Erteilung einer FTZ-Nummer begleitet.
- Net weight (2.2 lb = 1 kg)
- 0.020 kg / 0 lb 0.7 oz (0.044 lb)
- Author
- Model page created by Werner Wussow. See "Data change" for further contributors.
