• Year
  • 1989
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 147131

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 5
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Dry Batteries / R6: 6 x 1,5 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

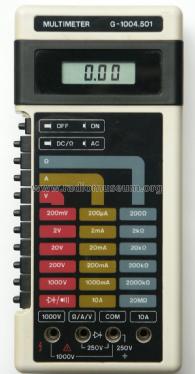

  • Model: Multimeter G 1004.501 - Mikroelektronik "Karl Marx"
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Notes
  • Messmöglichkeiten: Gleich- und Wechselstrom von 100 µV bis 1000 V, 10 nA bis 10 A; Widerstandsmessungen von 100 mOhm bis 20 MOhm; Diodentest und akustische Durchgangsprüfung.
  • Author
  • Model page created by Wolfgang Lill. See "Data change" for further contributors.
