• Country
• Switzerland

• Manufacturer / Brand
• Militär - Schweiz (verschiedene Hersteller)

• Year
• 1971–1975

• Category
• Military Receiver

• Radiomuseum.org ID
• 164500

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Short Wave (SW) and FM or UHF.

• Power type and voltage
• Storage and/or dry batteries / 24-28 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

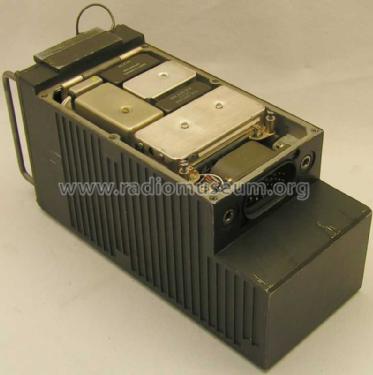

• Model: ZE-412 - Militär - Schweiz verschiedene

• Dimensions (WHD)
• 130 x 170 x 340 mm / 5.1 x 6.7 x 13.4 inch

• Notes
• Zusatzempfänger zu Funkstation SE-412 (RT-524A/VRC), 960 Kanäle im Bereich von 30-75MHz

• Net weight (2.2 lb = 1 kg)
• 8.4 kg / 18 lb 8 oz (18.502 lb)

• Source of data
• -- Original-techn. papers.

• Other Models

• Here you find 8 models, 8 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
