• Country
• France

• Manufacturer / Brand
• MILITARY France, production militaire commune

• Year
• 1917 ??

• Category
• Radio module pre 1926 (not a part, not a key)

• Radiomuseum.org ID
• 279284

• Number of Tubes
• 4

• Valves / Tubes
• TM TM TM TM

• Main principle
• Crystal or Solid State Detector with Amplifer

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 4 & 160 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

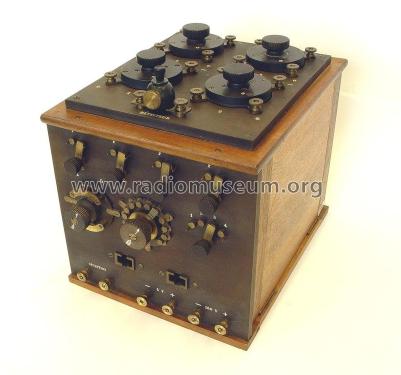

• Model: Amplificateur [Tubes internes] - MILITARY France, production

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 270 x 370 x 340 mm / 10.6 x 14.6 x 13.4 inch

• Notes

• Ce module comporte un détecteur Excentro.



• Net weight (2.2 lb = 1 kg)
• 7.7 kg / 16 lb 15.4 oz (16.96 lb)

• Author
• Model page created by Musée des Radios Museum. See "Data change" for further contributors.

• Other Models

• Here you find 74 models, 67 with images and 8 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
