AF amplifier AM-65/GRC

AF amplifier AM-65/GRC; MILITARY U.S. (ID = 726505) Military

AF amplifier AM-65/GRC; MILITARY U.S. (ID = 726504) Military
AF amplifier AM-65/GRC; MILITARY U.S. (ID = 1800200) Military AF amplifier AM-65/GRC; MILITARY U.S. (ID = 726501) Military
AF amplifier AM-65/GRC; MILITARY U.S. (ID = 726502) Military AF amplifier AM-65/GRC; MILITARY U.S. (ID = 726503) Military
AF amplifier AM-65/GRC; MILITARY U.S. (ID = 1800201) Military AF amplifier AM-65/GRC; MILITARY U.S. (ID = 1959251) Military

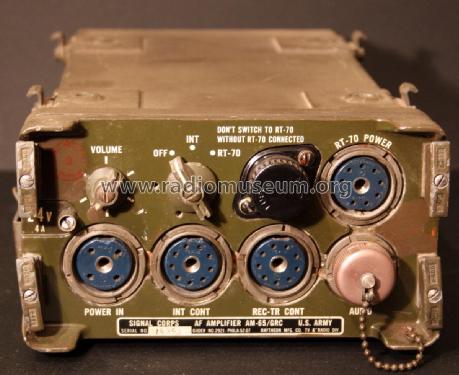

AF amplifier AM-65/GRC; MILITARY U.S. (ID = 1959252) Military AF amplifier AM-65/GRC; MILITARY U.S. (ID = 1959253) Military
AF amplifier AM-65/GRC; MILITARY U.S. (ID = 1959255) Military AF amplifier AM-65/GRC; MILITARY U.S. (ID = 1959257) Military
Use red slider bar for more.
AF amplifier AM-65/GRC; MILITARY U.S. (ID = 1800200) Military
MILITARY U.S.: AF amplifier AM-65/GRC [Military] ID = 1800200 1252x1150
Select picture or schematic to display from thumbnails on the right and click for download.
For model AF amplifier AM-65/GRC, MILITARY U.S. (different makers for same model)

Country:  United States of America (USA)
Manufacturer / Brand:  MILITARY U.S. (different makers for same model)
Year: 1951 ?? Category: Military Equipment (not Re, Tr or RXT)
Valves / Tubes 7: 12AU7 12AU7 12AU7 6AK6 6AK6 0B2 0B2
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Batteries / addl. power jack / 6, 12, 24 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: AF amplifier AM-65/GRC - MILITARY U.S. different makers
Material Metal case
Shape Boatanchor (heavy military or commercial set >20 kg).
Dimensions (WHD) 200 x 110 x 330 mm / 7.9 x 4.3 x 13 inch

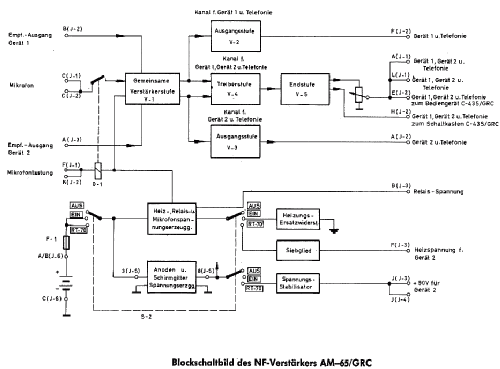

Notes AF amplifier installed in Army vehicles. Two isolated audio inputs are routed to a headset/intercom output via a common audio amplifier.

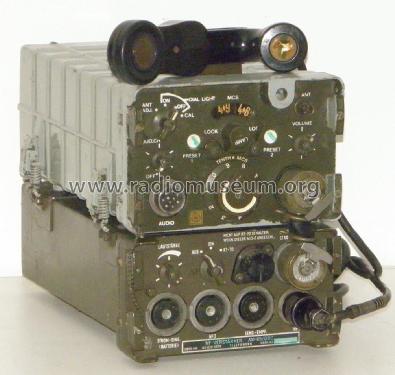

AUDIO 1 from Receiver/Transmitter RT-70/GRC
AUDIO 2 from Receiver/Transmitter RT-66/GRC or RT-67/GRC or RT-68/GRC.
Furthermore, this unit contains heater supply and anode supply (90V) for RT-70/GRC. This is accomplished a power inverter, built into the AM-65/GRC unit. Depending on primary battery supply, this can be:
PP448/GRC for 6V Battery
PP281/GRC for 12V Battery or
PP282/GRC for 24V Battery.
This unit of american origin has been built by contractors in several NATO countries. German Model built by Telefunken.
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Source of data - - Manufacturers Literature

Model page created by Franz Harder. See "Data change" for further contributors.
