Umformer U.8

Umformer U.8; Lorenz; Berlin, (ID = 1288482) Power-S

Umformer U.8; Lorenz; Berlin, (ID = 1288484) Power-S

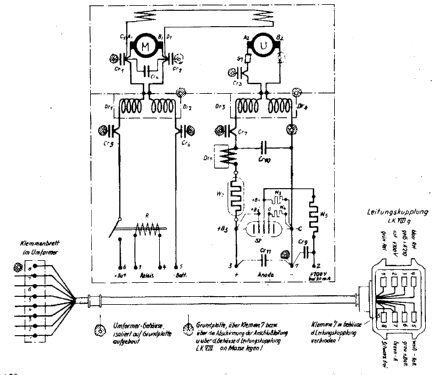

Umformer U.8; Lorenz; Berlin, (ID = 1288493) Power-S

Umformer U.8; Lorenz; Berlin, (ID = 1288487) Power-S

Umformer U.8; Lorenz; Berlin, (ID = 1288489) Power-S

Umformer U.8; Lorenz; Berlin, (ID = 1288494) Power-S
Umformer U.8; Lorenz; Berlin, (ID = 1242390) Power-S Umformer U.8; Lorenz; Berlin, (ID = 1242391) Power-S
Umformer U.8; Lorenz; Berlin, (ID = 1242392) Power-S Umformer U.8; Lorenz; Berlin, (ID = 1242393) Power-S
Umformer U.8; Lorenz; Berlin, (ID = 1242394) Power-S Umformer U.8; Lorenz; Berlin, (ID = 1242395) Power-S
Umformer U.8; Lorenz; Berlin, (ID = 1242396) Power-S Umformer U.8; Lorenz; Berlin, (ID = 1249405) Power-S
Umformer U.8; Lorenz; Berlin, (ID = 1249406) Power-S Umformer U.8; Lorenz; Berlin, (ID = 1607107) Power-S
Use red slider bar for more.
Umformer U.8; Lorenz; Berlin, (ID = 1242390) Power-S
Lorenz; Berlin,: Umformer U.8 [Power-S] ID = 1242390 469x454
Select picture or schematic to display from thumbnails on the right and click for download.
For model Umformer U.8, Lorenz; Berlin, Zuffenhausen u.a.:
Ebay auction by user ©senmonka 320904955643 / Lorenz

Country:  Germany
Manufacturer / Brand:  Lorenz; Berlin, Zuffenhausen u.a.
Brand

SEL
Year: 1940–1945 Category: Power supply/conditioner or battery or charger
Valves / Tubes Ln26698 STV280/40
Wave bands - without
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 29 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Umformer U.8 - Lorenz; Berlin, Zuffenhausen u
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 205 x 235 x 125 mm / 8.1 x 9.3 x 4.9 inch
Notes Einanker-Umformer für Anodenspannung der Empfänger EBl.1 und EBl.2 der Funklande-Empfangsanlage Fu BL 1. Ausgangsspannung 210 V / 40 mA Gleichstrom, stabilisiert.
Net weight (2.2 lb = 1 kg) 5.5 kg / 12 lb 1.8 oz (12.115 lb)
Source of data - - Manufacturers Literature
Mentioned in - - Manufacturers Literature (Beschreibung und Betriebsvorschrift für Funklande-Empfangsanlage Fu BL 1 Ex)

Model page created by a member from A. See "Data change" for further contributors.
