Antennen-Anpassgerät SFU {СФУ}

MILITARY USSR (different makers for same model)

  • Year
  • 1960 ??
  • Category
  • Antenna (Aerial) or Coupler
  • Radiomuseum.org ID
  • 318086

 Technical Specifications

  • Main principle
  • RF-Circuit or wave trap (separate, can also be an antenna with amp.)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org

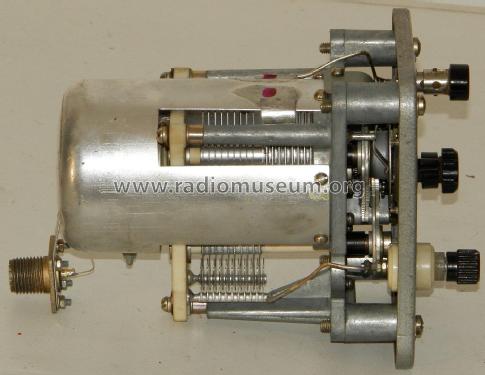

  • Model: Antennen-Anpassgerät SFU {СФУ} - MILITARY USSR different makers
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 130 x 100 x 195 mm / 5.1 x 3.9 x 7.7 inch
  • Notes
  • Teil einer UdSSR-Funkstation. Das Gerät passt im Frequenzbereich 20 bis 50 MHz ein Funksprechgerät an eine Stabantenne an.

  • Net weight (2.2 lb = 1 kg)
  • 1.930 kg / 4 lb 4 oz (4.251 lb)
  • Author
  • Model page created by Siegfried Droese. See "Data change" for further contributors.
