AN/VRC-9

AN/VRC-9 ; MILITARY U.S. (ID = 1416359) Commercial TRX
AN/VRC-9 ; MILITARY U.S. (ID = 1189929) Commercial TRX AN/VRC-9 ; MILITARY U.S. (ID = 1207818) Commercial TRX
AN/VRC-9 ; MILITARY U.S. (ID = 1207821) Commercial TRX AN/VRC-9 ; MILITARY U.S. (ID = 1207822) Commercial TRX
AN/VRC-9 ; MILITARY U.S. (ID = 1207823) Commercial TRX AN/VRC-9 ; MILITARY U.S. (ID = 1207824) Commercial TRX
AN/VRC-9 ; MILITARY U.S. (ID = 1207825) Commercial TRX AN/VRC-9 ; MILITARY U.S. (ID = 1207826) Commercial TRX
AN/VRC-9 ; MILITARY U.S. (ID = 1497747) Commercial TRX
Use red slider bar for more.
AN/VRC-9 ; MILITARY U.S. (ID = 1189929) Commercial TRX

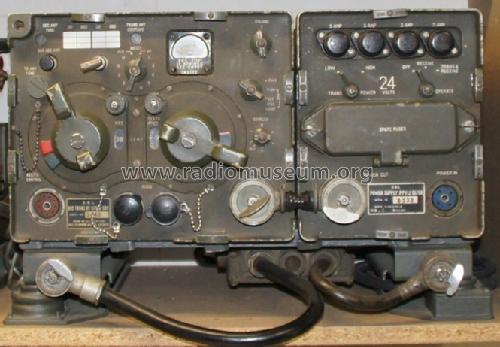

MILITARY U.S.: AN/VRC-9 [Commercial TRX] ID = 1189929 689x486
Select picture or schematic to display from thumbnails on the right and click for download.
For model AN/VRC-9, MILITARY U.S. (different makers for same model):
N°41 BE_AN-VRC9_SCOV

Country:  United States of America (USA)
Manufacturer / Brand:  MILITARY U.S. (different makers for same model)
Year: 1949 ?? Category: Commercial Transmitter & Receiver (TRX not Amateur)
Valves / Tubes 27: 6AK5 1R5 3A5 3Q4 3A4 1AE4 3B4 2E24 1L4 1S5 1U4 1A3 0A2 0B2
Main principle Transceiver
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 24 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: AN/VRC-9 - MILITARY U.S. different makers
Material Metal case
Shape Boatanchor (heavy military or commercial set >20 kg).

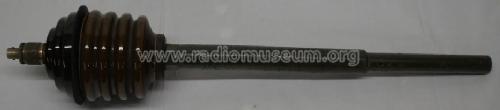

Notes Receiver-Transmitter for mobile purposes, frequency range 28 - 39 MHz, continuous tuning or presets, FM, 2 or 15 Watts output. Used in most NATO armies (US, France, Beligum, Germany etc.). The transceiver is RT-67, power supply is PP-112. (made by various manufacturers in the US and elsewhere, e.g. in Belgium (Bell and MBLE). The complete set includes: Loudspeaker LS-166/U Microphone M-29B/U Microphone combined H-33F/PT Antenna set AB15, MS-116, MS-117, MS-118 and câble CG-530/U Mounting MT-299/GRC Cover case, accessory bag (for antenna, spares tubes...) The tubes 0A2 0B2 are used in the PP-112.

Model page created by Serge Covairy. See "Data change" for further contributors.
