Control Intercommunication Set C-980A/U

Control Intercommunication Set C-980A/U; MILITARY U.S. (ID = 1139871) Military
Control Intercommunication Set C-980A/U; MILITARY U.S. (ID = 1139060) Military Control Intercommunication Set C-980A/U; MILITARY U.S. (ID = 1139062) Military

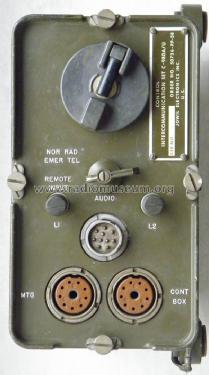

Control Intercommunication Set C-980A/U; MILITARY U.S. (ID = 1139063) Military Control Intercommunication Set C-980A/U; MILITARY U.S. (ID = 1139064) Military
Use red slider bar for more.
Control Intercommunication Set C-980A/U; MILITARY U.S. (ID = 1139060) Military
MILITARY U.S.: Control Intercommunication Set C-980A/U [Military] ID = 1139060 933x851
Select picture or schematic to display from thumbnails on the right and click for download.
For model Control Intercommunication Set C-980A/U, MILITARY U.S. (different makers for same model)

Country:  United States of America (USA)
Manufacturer / Brand:  MILITARY U.S. (different makers for same model)
Year: 1958 Category: Military Equipment (not Re, Tr or RXT)
Valves / Tubes 1: 28D7
Main principle Audio-Amplification; 1 AF stage(s)
Wave bands - without
Details
Power type and voltage Dry Batteries / 2x 1,5 & 24-28 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Control Intercommunication Set C-980A/U - MILITARY U.S. different makers
Material Metal case
Shape Boatanchor (heavy military or commercial set >20 kg).
Dimensions (WHD) 125 x 220 x 220 mm / 4.9 x 8.7 x 8.7 inch
Notes Teil der Funkausrüstung/Bordsprechanlage eines Kampffahrzeuges. NF-Verstärker mit Niedervoltröhre, Anodenspannung ist die Bordspannung (24 bis 28 V). Gerät ist auch als Feldtelefon zu benutzen, Stromversorgung zwei Monozellen.
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Source of data - - Data from my own collection

Model page created by Siegfried Droese. See "Data change" for further contributors.
