Crystal (Quartz) FT-241

Crystal FT-241; MILITARY U.S. (ID = 785731) Radio part Crystal FT-241; MILITARY U.S. (ID = 785732) Radio part
Crystal FT-241; MILITARY U.S. (ID = 785733) Radio part
Use red slider bar for more.
Crystal FT-241; MILITARY U.S. (ID = 785731) Radio part
MILITARY U.S.: Crystal FT-241 [Radio part] ID = 785731 933x787
Select picture or schematic to display from thumbnails on the right and click for download.
For model Crystal (Quartz) FT-241, MILITARY U.S. (different makers for same model):

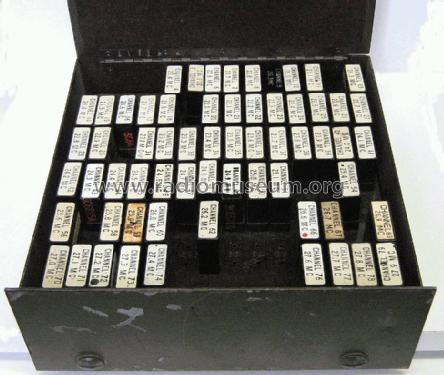

FT-241 in box, fitted in BC-604

Country:  United States of America (USA)
Manufacturer / Brand:  MILITARY U.S. (different makers for same model)
Year: 1943 ? Category: Radio part (not a module)
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Crystal FT-241 - MILITARY U.S. different makers
Material Various materials
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 29 x 39 x 12 mm / 1.1 x 1.5 x 0.5 inch

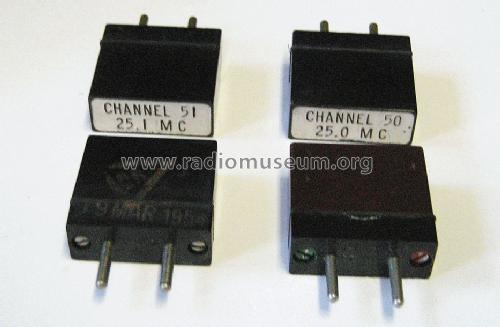

Notes FT-241 crystals, black series, were used in the BC-604 with a working frequency 20-27,9 MHz, 80 "channels" numbered 0-79.
Their fundamental frequency is 370,370 - 516,666 kHz, to be multiplied by 54.

FT-241 crystals, brown series, were used in the BC-684 with a working frequency 27-38,9 MHz, 120 "channels" numbered 270-389.
Their fundamental frequency is 375,000 - 540,277 kHz, to be multiplied by 72.

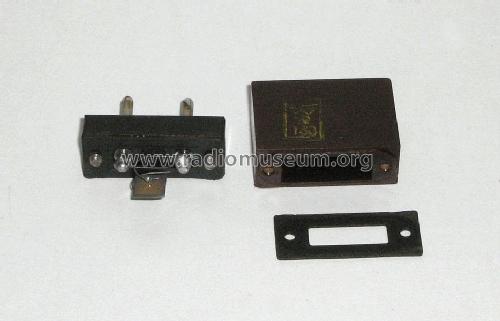

This crystal type is far not as indestructible as the FT-243 type; the small silvered crystal-plate is welded-connected with two spring-type wires, but these connections are often broken after many years.
These crystals have a very interesting fundamental frequency range to compose sharp IF- filters around 450-475 kHz.
Net weight (2.2 lb = 1 kg) 0.010 kg / 0 lb 0.4 oz (0.022 lb)
Source of data - - Data from my own collection

Model page created by Jan Terranea. See "Data change" for further contributors.
