Electronic Multimeter TS-505D/U

Electronic Multimeter TS-505D/U; MILITARY U.S. (ID = 846812) Equipment

Electronic Multimeter TS-505D/U; MILITARY U.S. (ID = 846813) Equipment
Electronic Multimeter TS-505D/U; MILITARY U.S. (ID = 2573390) Equipment Electronic Multimeter TS-505D/U; MILITARY U.S. (ID = 1104288) Equipment
Electronic Multimeter TS-505D/U; MILITARY U.S. (ID = 2221386) Equipment
Use red slider bar for more.
Electronic Multimeter TS-505D/U; MILITARY U.S. (ID = 2573390) Equipment

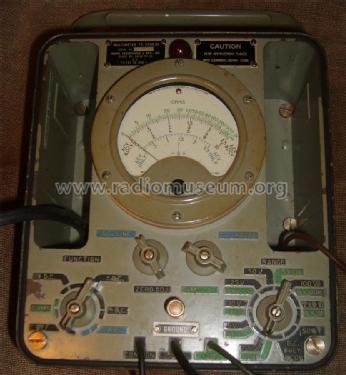

MILITARY U.S.: Electronic Multimeter TS-505D/U [Equipment] ID = 2573390 1400x1715
Select picture or schematic to display from thumbnails on the right and click for download.
For model Electronic Multimeter TS-505D/U, MILITARY U.S. (different makers for same model):
Gerät steht in der Sternwarte Bochum

Country:  United States of America (USA)
Manufacturer / Brand:  MILITARY U.S. (different makers for same model)
Year: 1958 Category: Service- or Lab Equipment
Valves / Tubes 5: 6AU6 6AU6 12AT7 6AL5 6X4 NE32 NE32
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-130 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Electronic Multimeter TS-505D/U - MILITARY U.S. different makers
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 200 x 240 x 130 mm / 7.9 x 9.4 x 5.1 inch
Notes VTVM, 0 to 1000 VDC, 0 to 200 VAC, 0 to +/- 500 VDC, 0-1000 megohm, in 9 rages. The TS-505D/U is one of several advanced versions of the TS-505/U (1951).
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Mentioned in -- Original-techn. papers. (US Army Technical Manual TM 11-5511(TS-505/U))

Model page created by Hans Zimmermann. See "Data change" for further contributors.
