Enclosed Radio Key J-48

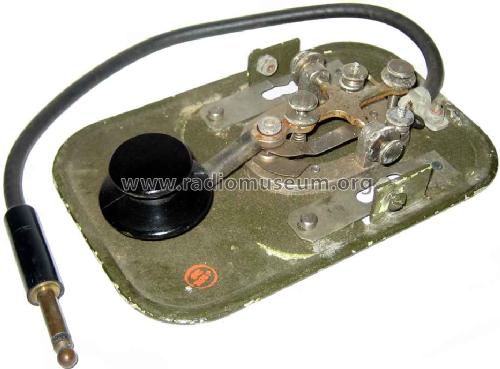

Enclosed Radio Key J-48; MILITARY U.S. (ID = 1230635) Morse+TTY Enclosed Radio Key J-48; MILITARY U.S. (ID = 1230636) Morse+TTY
Use red slider bar for more.
Enclosed Radio Key J-48; MILITARY U.S. (ID = 1230635) Morse+TTY
MILITARY U.S.: Enclosed Radio Key J-48 [Morse+TTY] ID = 1230635 794x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Enclosed Radio Key J-48, MILITARY U.S. (different makers for same model)

Country:  United States of America (USA)
Manufacturer / Brand:  MILITARY U.S. (different makers for same model)
Year: 1940 ?? Category: Morse-Equipment & TTY, RTTY, TDD etc.
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Enclosed Radio Key J-48 - MILITARY U.S. different makers
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 105 x 42 x 167 mm / 4.1 x 1.7 x 6.6 inch
Notes This olive-drab-painted key was mounted on the flip-open front panel of the BC-654 portable and mobile radio set.
Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)
Mentioned in Tom Perera, W1TP "Telegraph Collectors Guide"

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
