Feldstärke-Messgerät

Feldstärke-Messgerät ; MILITARY USSR (ID = 2148026) Misc Feldstärke-Messgerät ; MILITARY USSR (ID = 2148029) Misc

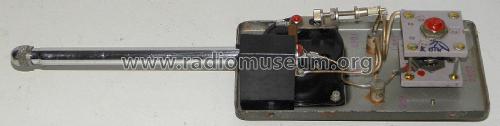

Feldstärke-Messgerät ; MILITARY USSR (ID = 2148032) Misc Feldstärke-Messgerät ; MILITARY USSR (ID = 2148033) Misc
Use red slider bar for more.
Feldstärke-Messgerät ; MILITARY USSR (ID = 2148026) Misc
MILITARY USSR: Feldstärke-Messgerät [Misc] ID = 2148026 780x2100
Select picture or schematic to display from thumbnails on the right and click for download.
For model Feldstärke-Messgerät, MILITARY USSR (different makers for same model)

Country:  Soviet Union
Manufacturer / Brand:  MILITARY USSR (different makers for same model)
Year: 1960 ?? Category: Miscellaneous (Other, Various) - see notes
Main principle Crystal or Solid State Detector
Wave bands Wave Bands given in the notes.
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Feldstärke-Messgerät - MILITARY USSR different makers
Material Metal case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 95 x 170 x 80 mm / 3.7 x 6.7 x 3.1 inch
Notes

Gerät zur Messung der Feldstärke von VHF- und ggf. auch KW-Sendern. Wer weiß mehr?

Net weight (2.2 lb = 1 kg) 1.120 kg / 2 lb 7.5 oz (2.467 lb)

Model page created by Siegfried Droese. See "Data change" for further contributors.
