Flugfunkempfänger Airborne HF Receiver RSI-6M {РСИ-6М}

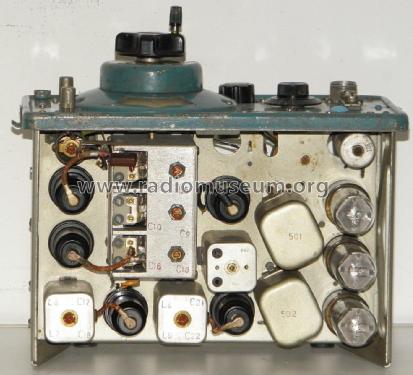

Flugfunkempfänger Airborne HF Receiver RSI-6M {РСИ-6М}; MILITARY USSR (ID = 2240720) Receiver-C Flugfunkempfänger Airborne HF Receiver RSI-6M {РСИ-6М}; MILITARY USSR (ID = 2240722) Receiver-C
Flugfunkempfänger Airborne HF Receiver RSI-6M {РСИ-6М}; MILITARY USSR (ID = 2241011) Receiver-C Flugfunkempfänger Airborne HF Receiver RSI-6M {РСИ-6М}; MILITARY USSR (ID = 2241012) Receiver-C
Flugfunkempfänger Airborne HF Receiver RSI-6M {РСИ-6М}; MILITARY USSR (ID = 2240721) Receiver-C Flugfunkempfänger Airborne HF Receiver RSI-6M {РСИ-6М}; MILITARY USSR (ID = 2241013) Receiver-C
Use red slider bar for more.
Flugfunkempfänger Airborne HF Receiver RSI-6M {РСИ-6М}; MILITARY USSR (ID = 2240720) Receiver-C
MILITARY USSR: Flugfunkempfänger Airborne HF Receiver RSI-6M {РСИ-6М} [Receiver-C] ID = 2240720 1400x894
Select picture or schematic to display from thumbnails on the right and click for download.
For model Flugfunkempfänger Airborne HF Receiver RSI-6M {РСИ-6М}, MILITARY USSR (different makers for same model):
Gerät etwas verbastelt, aber Funktionsfähig

Country:  Soviet Union
Manufacturer / Brand:  MILITARY USSR (different makers for same model)
Year: 1943 ? Category: Commercial Receiver (may include amateur bands)
Valves / Tubes 8: 6К7 6К7 6К7 6К7 6К7 13П1С 13П1С 13П1С
Main principle Superhet with RF-stage; ZF/IF 460 kHz; 2 AF stage(s)
Wave bands Short Wave (SW only)
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 26 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Flugfunkempfänger Airborne HF Receiver RSI-6M {РСИ-6М} - MILITARY USSR different makers
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 270 x 145 x 225 mm / 10.6 x 5.7 x 8.9 inch
Notes

Empfänger der Flugzeugfunkstation RSI-6.
Frequenzbereich 3,75 - 5,0 MHz durchstimmbar (Kanalnr. 150 - 200), Amplitudenmodulation.  Gegentakt- Endstufe.

Der Empfänger arbeitet mit den 26 V der Bordbatterie als Anodenspannung (kein Umformer erforderlich).

Die Funkstation RSI-6 wurde ab 1952 in der Tschechoslowakei in Lizenz gebaut.

Net weight (2.2 lb = 1 kg) 5.430 kg / 11 lb 15.4 oz (11.96 lb)
Mentioned in -- Original-techn. papers. (Radiostacja RSI-6 Swiat Radio Lipiec 2013 Seite 53)

Model page created by Siegfried Droese. See "Data change" for further contributors.
