Frequency Meter BC-906-D

Frequency Meter BC-906-D; MILITARY U.S. (ID = 760606) Equipment
Frequency Meter BC-906-D; MILITARY U.S. (ID = 760605) Equipment Frequency Meter BC-906-D; MILITARY U.S. (ID = 760604) Equipment
Frequency Meter BC-906-D; MILITARY U.S. (ID = 1908340) Equipment Frequency Meter BC-906-D; MILITARY U.S. (ID = 1908341) Equipment
Frequency Meter BC-906-D; MILITARY U.S. (ID = 1908342) Equipment Frequency Meter BC-906-D; MILITARY U.S. (ID = 1908343) Equipment
Frequency Meter BC-906-D; MILITARY U.S. (ID = 1908344) Equipment
Use red slider bar for more.
Frequency Meter BC-906-D; MILITARY U.S. (ID = 760605) Equipment

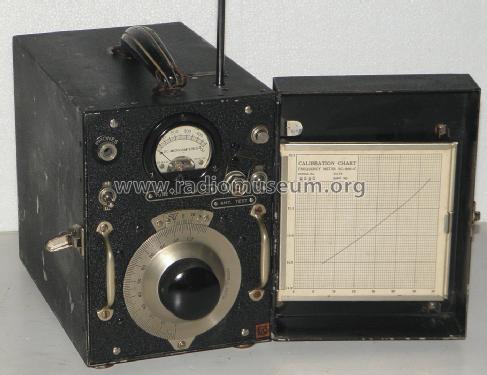

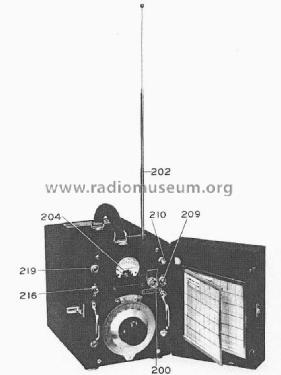

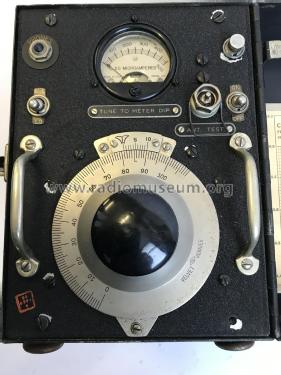

MILITARY U.S.: Frequency Meter BC-906-D [Equipment] ID = 760605 933x625
Select picture or schematic to display from thumbnails on the right and click for download.
For model Frequency Meter BC-906-D, MILITARY U.S. (different makers for same model)

Country:  United States of America (USA)
Manufacturer / Brand:  MILITARY U.S. (different makers for same model)
Year: 1943 ?? Category: Service- or Lab Equipment
Valves / Tubes 1: VT-172 or 1S5
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage and/or dry batteries / 45 & 1,5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Frequency Meter BC-906-D - MILITARY U.S. different makers
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 165 x 255 x 280 mm / 6.5 x 10 x 11 inch
Notes BC-906, part of test equipment IE-46-B, is an absorption-type VHF frequency meter. It was in use for determination and setting of the frequency radiated by the IFF-transponder equipment SCR-595 and SCR 695. The measuring frequency is 150 to 225 Mhz. On the front panel is a micro-ammeter which shows a minimum reading when the instrument in in resonance with a signal source. Other parts of the IE-46-B are: receiver BC-1066-B and signal generator I-196-B.
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Source of data -- Original-techn. papers.

Model page created by Jan Terranea. See "Data change" for further contributors.
