Frequency Meter TS-174B/U

Frequency Meter TS-174B/U; MILITARY U.S. (ID = 917546) Equipment

Frequency Meter TS-174B/U; MILITARY U.S. (ID = 917547) Equipment

Frequency Meter TS-174B/U; MILITARY U.S. (ID = 1937612) Equipment

Frequency Meter TS-174B/U; MILITARY U.S. (ID = 1937614) Equipment

Frequency Meter TS-174B/U; MILITARY U.S. (ID = 1937688) Equipment

Frequency Meter TS-174B/U; MILITARY U.S. (ID = 1937689) Equipment

Frequency Meter TS-174B/U; MILITARY U.S. (ID = 1937701) Equipment

Frequency Meter TS-174B/U; MILITARY U.S. (ID = 1937702) Equipment

Frequency Meter TS-174B/U; MILITARY U.S. (ID = 1937704) Equipment

Frequency Meter TS-174B/U; MILITARY U.S. (ID = 1937705) Equipment
Frequency Meter TS-174B/U; MILITARY U.S. (ID = 409983) Equipment Frequency Meter TS-174B/U; MILITARY U.S. (ID = 409985) Equipment

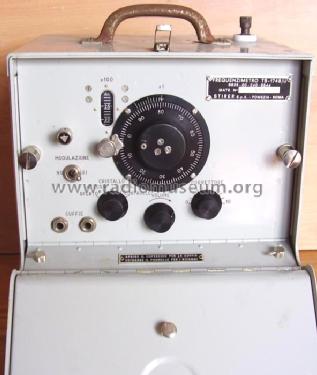

Frequency Meter TS-174B/U; MILITARY U.S. (ID = 409984) Equipment Frequency Meter TS-174B/U; MILITARY U.S. (ID = 409982) Equipment
Frequency Meter TS-174B/U; MILITARY U.S. (ID = 409986) Equipment Frequency Meter TS-174B/U; MILITARY U.S. (ID = 409987) Equipment
Use red slider bar for more.
Frequency Meter TS-174B/U; MILITARY U.S. (ID = 409983) Equipment
MILITARY U.S.: Frequency Meter TS-174B/U [Equipment] ID = 409983 499x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Frequency Meter TS-174B/U, MILITARY U.S. (different makers for same model)

Country:  United States of America (USA)
Manufacturer / Brand:  MILITARY U.S. (different makers for same model)
Year: 1951 ? Category: Service- or Lab Equipment
Valves / Tubes 3: 6SJ7Y 6K8 6SJ7
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage and/or dry batteries / 135 & 6 Volt
Loudspeaker - For headphones or amp.
Power out 0.005 W (unknown quality)
from Radiomuseum.org Model: Frequency Meter TS-174B/U - MILITARY U.S. different makers
Material Metal case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 10.3 x 11.7 x 13.8 inch / 262 x 297 x 351 mm
Notes Heterodyne frequency meter, covers from 20 to 250 MHz. Internal 1 MHz crystal calibrator. 0.04 calibration accuracy over -40 to +55 °C.
This was the VHF version of the legendary BC-221. The VFO is 20-40 MHZ; higher frequencies are harmonics. With the head-phone HS-30 zero-beating can be heard on an incoming signal and on crystal check-points.
Net weight (2.2 lb = 1 kg) 11.2 kg / 24 lb 10.7 oz (24.67 lb)

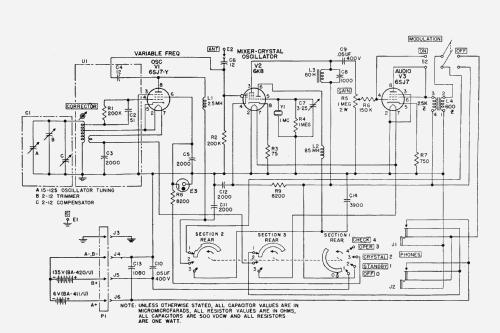

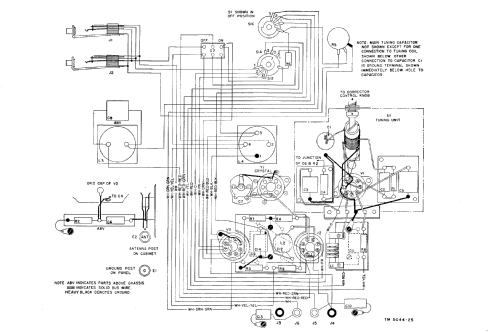

Literature/Schematics (1) TM 11-5044, Technical Manual

Model page created by Emilio Ciardiello. See "Data change" for further contributors.
