Интеграл Integral

• Country
• Soviet Union

• Manufacturer / Brand
• Dnepropetrovsk Radio Works {Днепропетровский радиозавод, ДРЗ}

• Year
• 1979–1988

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 141074

• Picture
• Schematics

Previous Next

Previous Next

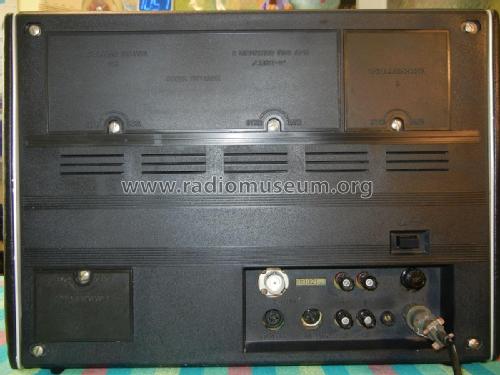

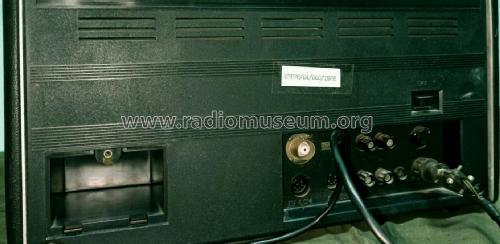

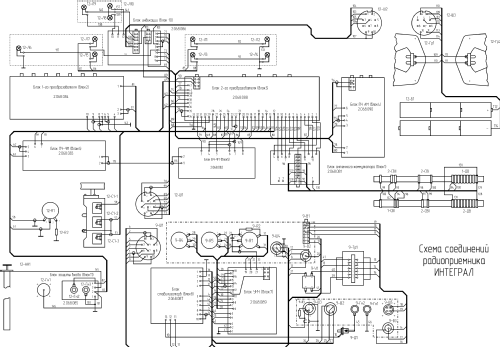

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superhet, double/triple conversion; ZF/IF 465/1840/10700 kHz

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 127; 220 / C: 8 × 1,5 / 12 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 1 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Интеграл Integral - Dnepropetrovsk Radio Works {Дн

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 505 x 340 x 205 mm / 19.9 x 13.4 x 8.1 inch

• Notes

• Portable radio set for military and special usage.
  Coverage MW, LW, 7 SW bands (13-49 m) and (64-74 MHz) OIRT FM.

  Double conversion in SW bands only.

  Power jack DC 12 V.

  Wood with imitation leather coating.

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Mentioned in

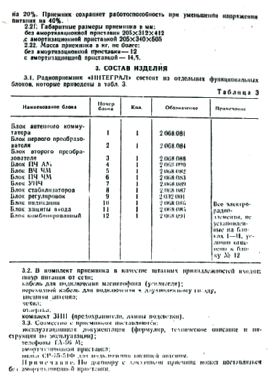

• -- Original-techn. papers.

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
