• Country
• Soviet Union

• Manufacturer / Brand
• Dnepropetrovsk Radio Works {Днепропетровский радиозавод, ДРЗ}

• Year
• 1977 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 141266

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Dry Batteries / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 0.5 W (1 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Maâk {Маяк} M {М} - Dnepropetrovsk Radio Works {Дн

• Shape

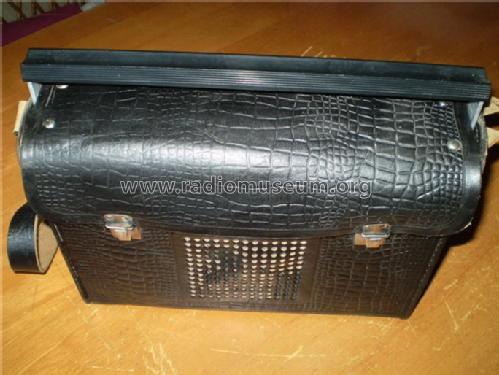

• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 300 x 230 x 90 mm / 11.8 x 9.1 x 3.5 inch

• Notes
• Portable radio set for special past SU services usage (not public).

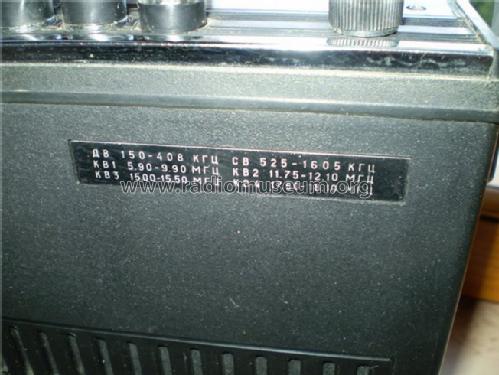

  Coverage MW, LW, 4 SW bands (16-49 m).

• Net weight (2.2 lb = 1 kg)
• 1.9 kg / 4 lb 3 oz (4.185 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
