Oscilloscope AN/USM-32
MILITARY U.S. (different makers for same model)
- Country
- United States of America (USA)
- Manufacturer / Brand
- MILITARY U.S. (different makers for same model)
- Year
- 1955 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 351781

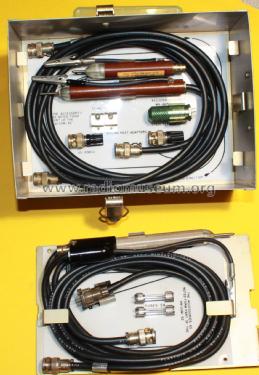

USA_MILITARY U.S. Oscilloscope AN/USM-32
- Number of Tubes
- 24
- Valves / Tubes
- 12AT7WA 6AK5W 5814A 12AT7WA 6AN5WA 6AK5W 6AK5W 6AU6WA 5814A 12AT7WA 5814A 12AT7WA 6201 6AL5W 6AU6WA 6AU6WA 3WP1 6AN5WA 6AN5WA 5651WA 6201 1Z2 6X4W 6X4W
- Power type and voltage
- Alternating Current supply (AC) / 50,60 or 400 Hz, 115 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Oscilloscope AN/USM-32 - MILITARY U.S. different makers
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 150 x 205 x 410 mm / 5.9 x 8.1 x 16.1 inch
- Notes
-
- Frequency response vertical channel 10 Hz to 4 MHz @ -2dB
- Input impedance 1 Mohm
- Sweep time continuously variable from 10 µS to 200 mS
- Marker generator synchronized with sweep.
- Voltage calibrator.
- Net weight (2.2 lb = 1 kg)
- 9.9 kg / 21 lb 12.9 oz (21.806 lb)
- Mentioned in
- U.S. ARMY/NAVY TM11-5123
- Author
- Model page created by Georges Werts. See "Data change" for further contributors.
