• Country
• United States of America (USA)

• Manufacturer / Brand
• MILITARY U.S. (different makers for same model)

• Year
• 1951

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 87472

• Number of Tubes
• 12

• Valves / Tubes
• 5998 5998 5998 5998 5998 5998 5R4GY 5R4GY 5R4GY 5R4GY 5751 5751 0B2 0B2

• Power type and voltage
• Alternating Current supply (AC) / 115; 230 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

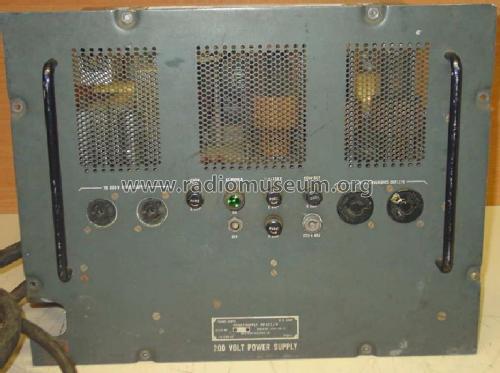

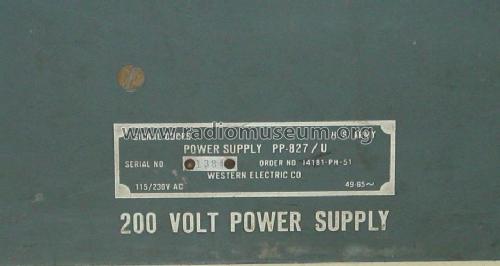

• Model: PP-827/U - MILITARY U.S. different makers

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 500 x 400 x 400 mm / 19.7 x 15.7 x 15.7 inch

• Notes
• Power supply unit for telephone terminal carrier system AN/TCC-7. Signal Corps US Army. Mainly made by Western Electric.

• Net weight (2.2 lb = 1 kg)
• 36 kg / 79 lb 4.7 oz (79.295 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
