• Country
• United States of America (USA)

• Manufacturer / Brand
• MILITARY U.S. (different makers for same model)

• Year
• 1945 ??

• Category
• Military Receiver

• Radiomuseum.org ID
• 250762

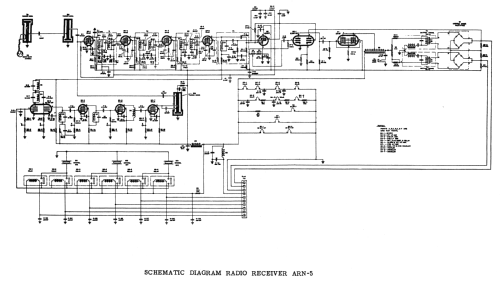

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes

• Power type and voltage
• Storage and/or dry batteries / 24 Volt

• Material
• Metal case

• from Radiomuseum.org
• Model: R89/ARN5-A - MILITARY U.S. different makers

• Dimensions (WHD)
• 6.5 x 6 x 8 inch / 165 x 152 x 203 mm

• Notes

• Airborne glide path receiver.  Designed to communicate with the AN/CRN-2.

• Mentioned in
• The Surplus Handbook - Receivers and Transmitters (page 13-14)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
