R-105 / ARR-15; MILITARY U.S. (ID = 2247233) Military

R-105 / ARR-15; MILITARY U.S. (ID = 2247235) Military

R-105 / ARR-15; MILITARY U.S. (ID = 2247236) Military

R-105 / ARR-15; MILITARY U.S. (ID = 1608886) Military

R-105 / ARR-15; MILITARY U.S. (ID = 2247237) Military

R-105 / ARR-15; MILITARY U.S. (ID = 2247238) Military

R-105 / ARR-15; MILITARY U.S. (ID = 2247239) Military

R-105 / ARR-15; MILITARY U.S. (ID = 2247240) Military

R-105 / ARR-15; MILITARY U.S. (ID = 1610454) Military

R-105 / ARR-15; MILITARY U.S. (ID = 2247234) Military

Use red slider bar for more.

MILITARY U.S.: R-105 / ARR-15 [Military] ID = 2247233 1024x768

Select picture or schematic to display from thumbnails on the right and click for download.

For model R-105 / ARR-15, MILITARY U.S. (different makers for same model)

Country:

United States of America (USA)

Manufacturer / Brand:

MILITARY U.S. (different makers for same model)

Year: 1944–1950

Category: Military Equipment (not Re, Tr or RXT)

Valves / Tubes

14: 12A6 12H6 12SL7 12SL7 12SG7 12SG7 12SG7 12SG7 12SG7 12SJ7 12SJ7 12SJ7 12SJ7 12SJ7

Main principle	Superheterodyne (common); ZF/IF 500 kHz
Wave bands	Short Wave (SW only)
Details
Power type and voltage	Storage Battery for all (e.g. for car radios and amateur radios) / 26.5 Volt
Loudspeaker	- For headphones or amp.
Power out
from Radiomuseum.org	Model: R-105 / ARR-15 - MILITARY U.S. different makers
Material	Metal case
Shape	Boatanchor (heavy military or commercial set >20 kg).
Dimensions (WHD)	10.4 x 7.9 x 21.6 inch / 264 x 201 x 549 mm

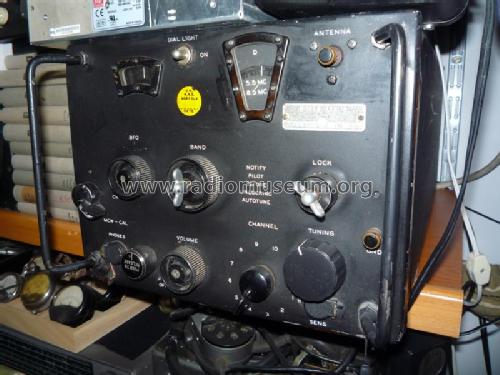

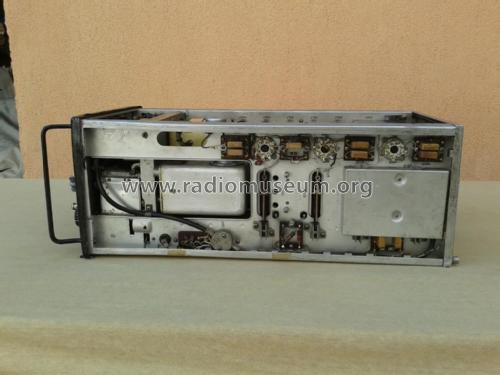

Notes	World War II Air Force R-105 / ARR-15 receiver: covers 1,5 - 18,5 MHz in six bands, 10 mechanically tuneable "Autotune" channels, AM / CW. Internal crystal calibrator and vernier dial allows 1 kHz frequency readout. Uses crystal detector for demodulation, later replaced by tube detector in later version R-105A. Part of AN/ART-13 radio system found on WWII planes like B-29, B-36 and C-119.
Net weight (2.2 lb = 1 kg)	39.5 lb (39 lb 8 oz) / 17.933 kg

Model page created by Martin Bösch. See "Data change" for further contributors.
