Radio Receiver & Transmitter BC620A

Radio Receiver & Transmitter BC620A; MILITARY U.S. (ID = 1744645) Commercial TRX
Radio Receiver & Transmitter BC620A; MILITARY U.S. (ID = 1690342) Commercial TRX Radio Receiver & Transmitter BC620A; MILITARY U.S. (ID = 1690343) Commercial TRX
Radio Receiver & Transmitter BC620A; MILITARY U.S. (ID = 1744705) Commercial TRX Radio Receiver & Transmitter BC620A; MILITARY U.S. (ID = 1744708) Commercial TRX
Use red slider bar for more.
Radio Receiver & Transmitter BC620A; MILITARY U.S. (ID = 1690342) Commercial TRX

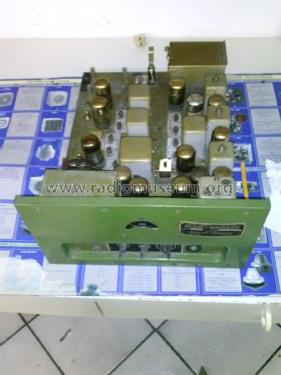

MILITARY U.S.: Radio Receiver & Transmitter BC620A [Commercial TRX] ID = 1690342 900x1200
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radio Receiver & Transmitter BC620A, MILITARY U.S. (different makers for same model)

Country:  United States of America (USA)
Manufacturer / Brand:  MILITARY U.S. (different makers for same model)
Year: 1943 Category: Commercial Transmitter & Receiver (TRX not Amateur)
Valves / Tubes 13: VT-182 VT-182 VT-185 VT-185 VT-179 VT-178 VT-185 VT-179 VT-179 VT-179 VT-183 VT-177 VT-185
Main principle Superheterodyne (common); ZF/IF 2880 kHz
Wave bands Short Wave (SW only)
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios)
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Radio Receiver & Transmitter BC620A - MILITARY U.S. different makers
Material Metal case
Shape Boatanchor (heavy military or commercial set).
Notes

Internal battery BA-41. 80 channels 20 to 27,9 MHz.

Part of SCR-509-(*), SCR-510-(*). Associated power supply PE-97-A or CS-79-(*).

Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Mentioned in Technical Manual TM 11-310, 1943

Model page created by Mario Bumma. See "Data change" for further contributors.
