Radio Set AN/GRC-26

Radio Set AN/GRC-26; MILITARY U.S. (ID = 1097547) Military Radio Set AN/GRC-26; MILITARY U.S. (ID = 1097548) Military
Use red slider bar for more.
Radio Set AN/GRC-26; MILITARY U.S. (ID = 1097547) Military
MILITARY U.S.: Radio Set AN/GRC-26 [Military] ID = 1097547 933x912
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radio Set AN/GRC-26, MILITARY U.S. (different makers for same model):

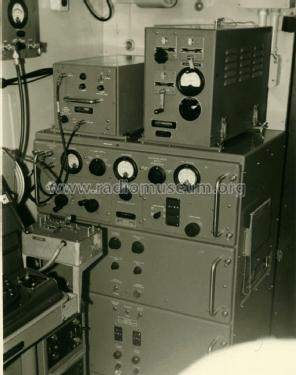

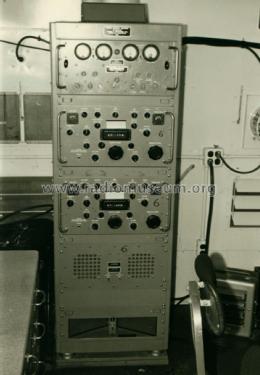

Combined PP-193A/TRA-7 Power Unit and CV-31B/TRA-7 Dual Diversity Converter, part of the USA Military Radio Set AN/GRC-26.

Country:  United States of America (USA)
Manufacturer / Brand:  MILITARY U.S. (different makers for same model)
Year: 1950 Category: Military Equipment (not Re, Tr or RXT)
Valves / Tubes 55:
Main principle Transceiver
Wave bands Short Wave (SW only)
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker - For headphones or amp.
Power out 400 W (unknown quality)
from Radiomuseum.org Model: Radio Set AN/GRC-26 - MILITARY U.S. different makers
Material Metal case
Shape Boatanchor (heavy military or commercial set).
Dimensions (WHD) 94 x 155 x 91 inch / 2388 x 3937 x 2311 mm

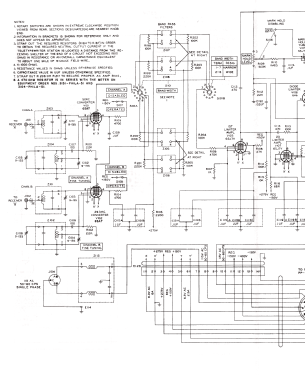

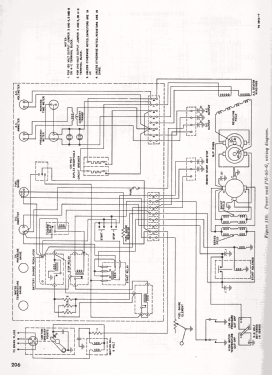

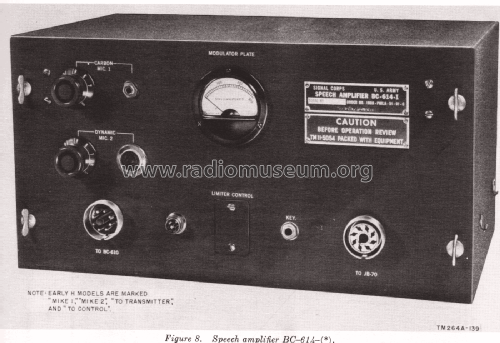

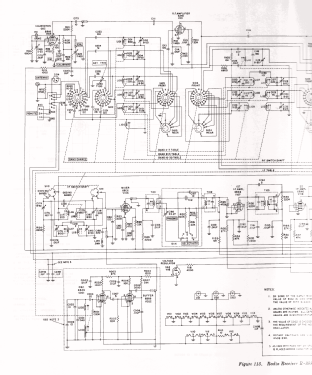

Notes The Radio Set AN/GRC-26 is a transportable assembly of equipment providing facilities for transmission and reception of radioteletype signals on an FS (frequency-shift) basis over a frequency range of 2 to 18 MHz, crystal-selected channels. Maximum power output is approximately 400 watts. Facilities are provided for operation of full-duplex, half-duplex or one-way reversible circuits. Continuous-wave telegraphy facilities are provided and amplitude-modulated voice transmission may be used alone or simultaneously with teletypewriter operation. Complete system is composed of Radio Transmitter T-213/GRC-26, Frequency Exciter O-39B/TRA-7, Control Unit C-292B/TRA-7, Radio Receiver R-336/GRC-26, Dual-Diversity Converter CV-31B/TRA-7 with Power Supply PP-193A/TRA-7, and Power Unit PE-95 (a five-kilowatt 4-cylinder gasoline genset). System weight is 15,400 pounds.
Source of data - - Data from my own collection
Mentioned in -- Original-techn. papers. (Department of USA Army Technical Manual TM11-264)

Model page created by Hank Kaczmarski. See "Data change" for further contributors.
