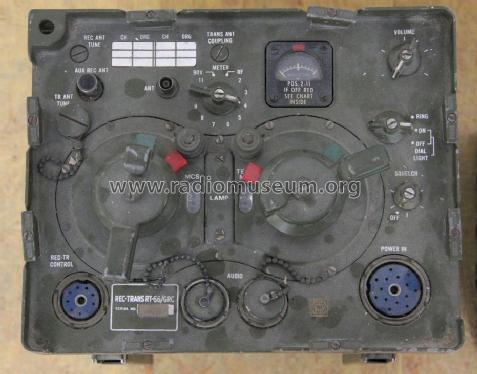

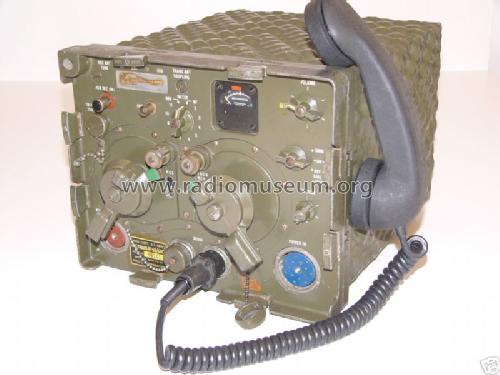

Receiver Transmitter RT-66/GRC; MILITARY U.S. (ID = 674162) TRX
MILITARY U.S.: Receiver Transmitter RT-66/GRC [TRX] ID = 674162 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Receiver Transmitter RT-66/GRC, MILITARY U.S. (different makers for same model)

Country:  United States of America (USA)
Manufacturer / Brand:  MILITARY U.S. (different makers for same model)
Year: 1953 Category: Transmitter & Receiver (TRX not Amateur)
Valves / Tubes 27: 3B4 3A5 1R5 3A4 1AE4 6AK5 3Q4 1A3 1U4 1L4 1S5 2E24
Main principle Transceiver; 2 AF stage(s)
Details
Power type and voltage Powered by external power supply or a main unit. / 24 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Receiver Transmitter RT-66/GRC - MILITARY U.S. different makers
Material Metal case
Shape Boatanchor (heavy military or commercial set).
Dimensions (WHD) 286 x 235 x 327 mm / 11.3 x 9.3 x 12.9 inch

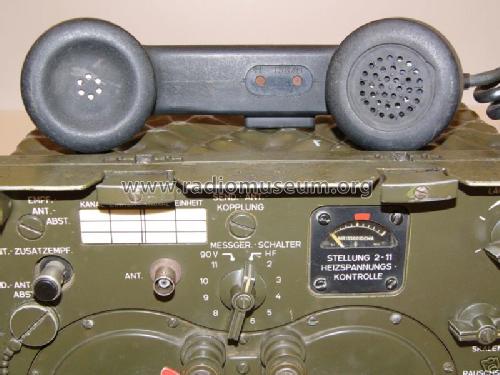

Notes Frequency range 20 - 28 MHz, VFO tuning, output 2 or 16 watts RF. Use with handset H-33*/PT or speaker LS-166/U. Different manuacturers in US, Germany and other countries. Used in most NATO armies.
Net weight (2.2 lb = 1 kg) 17 kg / 37 lb 7.1 oz (37.445 lb)
Collectors' prices
Mentioned in TM11-289, Dec. 1953

Model page created by Georg Nowak. See "Data change" for further contributors.
