Transmitter BC-375-(*)

Transmitter BC-375-; MILITARY U.S. (ID = 328120) TX

Transmitter BC-375-; MILITARY U.S. (ID = 328121) TX

Transmitter BC-375-; MILITARY U.S. (ID = 1441928) TX

Transmitter BC-375-; MILITARY U.S. (ID = 1441930) TX

Transmitter BC-375-; MILITARY U.S. (ID = 1441932) TX

Transmitter BC-375-; MILITARY U.S. (ID = 1441934) TX

Transmitter BC-375-; MILITARY U.S. (ID = 1441939) TX
Transmitter BC-375-; MILITARY U.S. (ID = 328129) TX Transmitter BC-375-; MILITARY U.S. (ID = 1441913) TX
Transmitter BC-375-; MILITARY U.S. (ID = 1441916) TX Transmitter BC-375-; MILITARY U.S. (ID = 2260295) TX
Transmitter BC-375-; MILITARY U.S. (ID = 2260297) TX
Use red slider bar for more.
Transmitter BC-375-; MILITARY U.S. (ID = 328129) TX
MILITARY U.S.: Transmitter BC-375- [TX] ID = 328129 626x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transmitter BC-375-(*), MILITARY U.S. (different makers for same model):

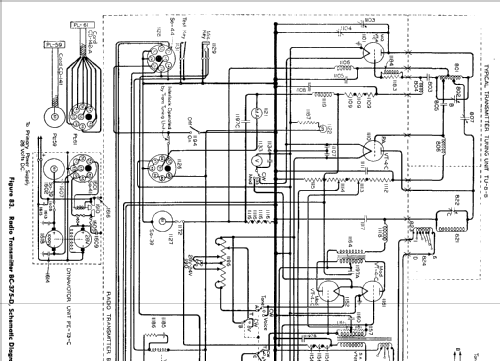

This picture, from the Radio Service and Instruction Manual of the B-24 Airplane, shows a BC-375-D complete with one tuning unit

Country:  United States of America (USA)
Manufacturer / Brand:  MILITARY U.S. (different makers for same model)
Year: 1942 ?? Category: Transmitter (TX not Transceiver)
Valves / Tubes 5: VT-25 VT-4C VT-4C VT-4C VT-4C
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 28 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Transmitter BC-375- - MILITARY U.S. different makers
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 580 x 510 x 230 mm / 22.8 x 20.1 x 9.1 inch
Notes HF transmitter, AM/CW, 200 kHz to 12.5 MHz in several bands, according to the tuning unit plugged into. For frequency details see the entries of each tuning unit: TU-5, TU-6, TU-7, TU-8, TU-9, TU-10, TU-22, TU-26. 50 to 75W, depending upon the frequency band. Required the PE-73 dynamotor for HV supply. 28V version of BC-191. The BC-375-(*) was generally used with its companion receiver BC-348 in several airplanes, such as B-17, B-24, B-25 and B-26. Part of SCR-287.
Net weight (2.2 lb = 1 kg) 28 kg / 61 lb 10.8 oz (61.674 lb)
Literature/Schematics (1) -- Original-techn. papers. (Radio Service Manual B-24D Airplane)

Model page created by Emilio Ciardiello. See "Data change" for further contributors.
