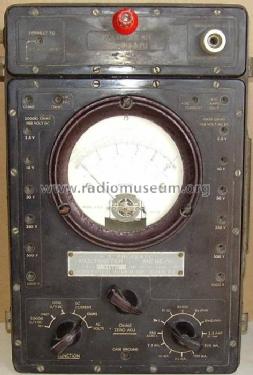

Multimeter TS-352A/U, ME-9E/U, MX-815A/U

• Country
• United States of America (USA)

• Manufacturer / Brand
• MILITARY U.S. (different makers for same model)

• Year
• 1955 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 115778

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Power type and voltage
• Dry Batteries / 3 X 4.5 & 1 X 1.5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Multimeter TS-352A/U, ME-9E/U, MX-815A/U - MILITARY U.S. different makers

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 185 x 290 x 120 mm / 7.3 x 11.4 x 4.7 inch

• Notes

• Military multimeter, including the multimeter proper, ME-9E/U built by Weston Electrical Instrument Co., and the HV multiplier kit, MX-815A/U, in a single carrying case. Selectable DC sensitivity, 20 or 1 kΩ/V, 1 kΩ/V AC. DC volts up to 5 kV, ACV up to 1 kV, DC current up to 10 A, five ohm ranges up to 30 MΩ. Uses three BA31, 4.5 V battery, and one BA30 1.5 volt battery.



• Net weight (2.2 lb = 1 kg)
• 5.1 kg / 11 lb 3.7 oz (11.233 lb)

• Source of data
• - - Data from my own collection

• Literature/Schematics (1)
• - - Manufacturers Literature (TM 11-5527 24-Oct-56)

• Literature/Schematics (2)
• - - Manufacturers Literature (TM-11-6625-366-10 Nov 76)

• Literature/Schematics (3)
• - - Manufacturers Literature (TM-11-6625-366-15 Jan 1967)

• Literature/Schematics (4)
• - - Manufacturers Literature (TM-11-6625-366-24P Dec 1976)

• Author
• Model page created by Emilio Ciardiello. See "Data change" for further contributors.
